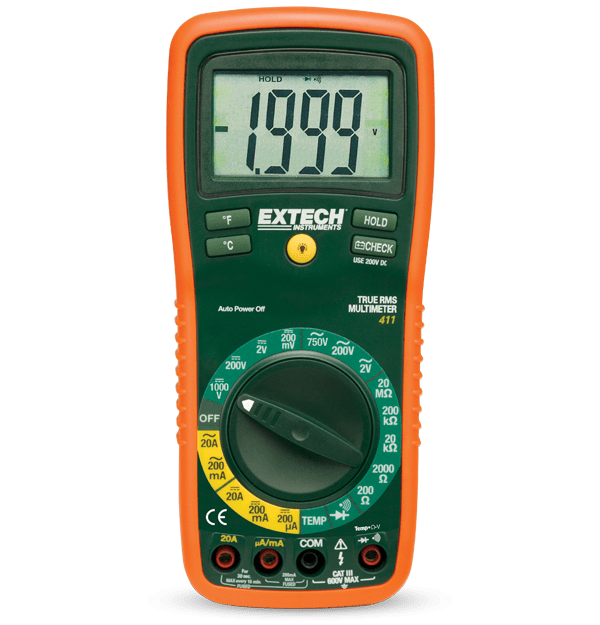

Extech EX411
8 Function True RMS Professional MultiMeter
The Extech EX411 offers multiple functions so you can carry one meter into the field instead of several. The manual ranging EX411 measures AC/DC voltage and current, resistance, diode, and continuity, all with ± 0.5 percent basic accuracy. The unit has low current capability, measuring down to 0.1 µA, and features input fuse protection and misconnection warnings. A Type K thermometer is built in for surface or air temperature measurements. Comes with CAT III test leads, stand, hanging strap, holster with builti n test lead storage, Type K bead wire temperature probe, and battery.
Especificações
| Especificações gerais | |
|---|---|
| Continuidade | Yes |
| Corrente Alternada (CA) | 0.1mA to 20A |
| Corrente Contínua (CC) | 0.1µA to 20A |
| Precisão básica da corrente alternada CA | ±0.5% |
| Precisão básica da corrente CC | ±0.5% |
| Precisão básica da tensão CA | ±0.5% |
| Precisão básica da tensão CC | ±0.3% |
| Resistência | 0.1Ω to 20MΩ |
| Resolução máx. da temperatura (tipo K) | -4 to 1382 °F (-20 to 750 °C) |
| Tensão de CA | 1mV to 750V |
| Tensão de CC | 0.1mV to 1000V |
| Teste de Diodo | Yes |
| True RMS | Yes |
| Detalhes adicionais | |
|---|---|
| Categoria de Segurança | CATIII - 600V, CATIV - 1000V |
| Certificações | UL |
| Dimensões | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| Garantia | 2 years |
| Peso | 0.75lbs (342g) |
| Potência | 1 × 9V battery |
Resources & Support
User Manual
Extech EX411 User Manual
Datasheet
Extech EX4xx Datasheet
