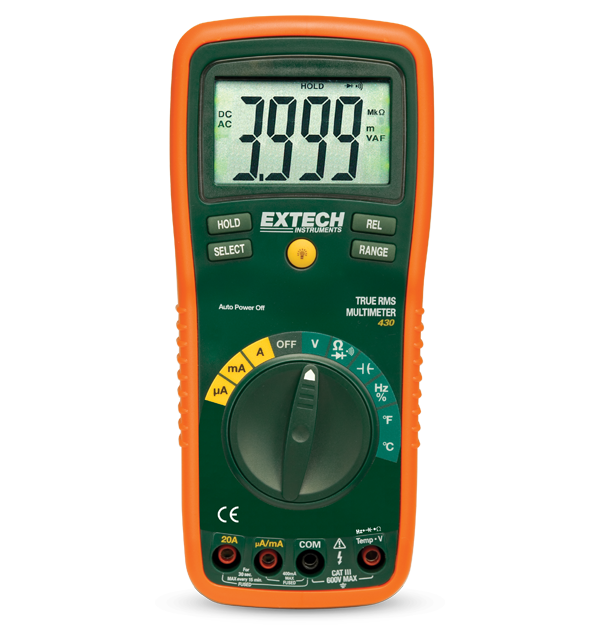

Extech EX430
11 Function True RMS Professional MultiMeter
The Extech EX430 True RMS Autoranging Multimeter is a professional grade, True RMS Multimeter capable of performing a wide range of measurements. Functions include AC/DC voltage to 600 V, AC/DC current to 20 A, resistance to 40 M, continuity, and diode test. It also includes a Type K thermometer function for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). Advanced functions include capacitance, frequency, and duty cycle. The meter comes complete with test leads, Type K temperature probe, 9 V battery, protective holster, adjustable tilt stand, and velcro hanging strap.
Especificações
| Especificações gerais | |
|---|---|
| Capacitância | 0.01nF to 100µF |
| Ciclo de Trabalho | 0.1% to 99.9% |
| Continuidade | Yes |
| Corrente Alternada (CA) | 0.1µA to 20A |
| Corrente Contínua (CC) | 0.1µA to 20A |
| Frequência | 0.001Hz to 10MHz |
| Precisão básica da tensão CC | ±0.3% |
| Resistência | 0.1Ω to 40MΩ |
| Resolução máx. da temperatura (tipo K) | -4 to 1382°F (-20 to 750°C) |
| Tensão de CA | 0.1mV to 750V |
| Tensão de CC | 0.1mV to 1000V |
| Teste de Diodo | Yes |
| True RMS | Yes |
| Detalhes adicionais | |
|---|---|
| Categoria de Segurança | CATIII - 600V, CATIV - 1000V |
| Certificações | UL |
| Dimensões | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| Garantia | 3 years |
| Peso | 0.75lbs (342g) |
| Potência | 1 × 9V battery |
Resources & Support
User Manual
Extech EX430 User Manual
Datasheet
Extech EX4xx Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
