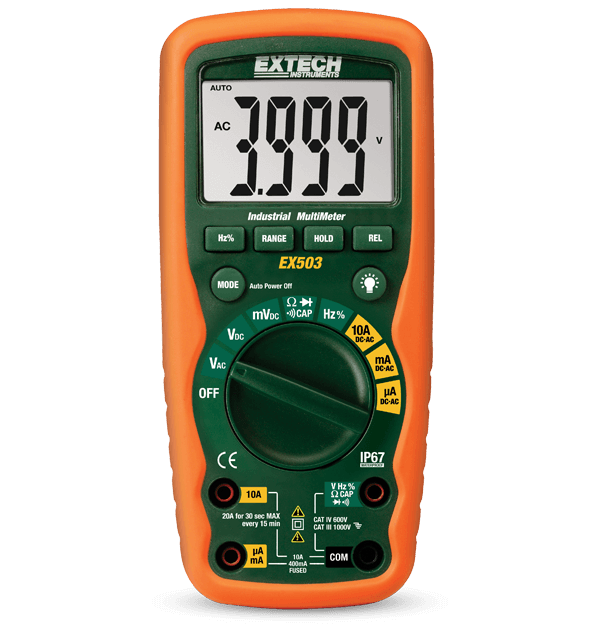

Extech EX503
10 Function Heavy Duty Industrial MultiMeter
The Extech EX503 offers an array of must-have multimeter measurements including capacitance, frequency (dual sensitivity for electrical and electronic applications), diode test, and continuity. Other features include data hold and relative hold, and manual or auto-ranging modes. The latter automatically adjusts the measurement range based on the detected source such as electrical components and electronic equipment. The meter features 0.5 percent accuracy and a CAT IV-600-volt safety rating, protecting users even on outdoor wiring. Includes double-molded test leads, magnetic hanging strap, 9-volt battery, carrying case, and user manual.
Especificações
| Especificações gerais | |
|---|---|
| Capacitância | 0.01nF to 100ΩF |
| Ciclo de Trabalho | 0.1 to 99.9% |
| Continuidade | Yes |
| Corrente Alternada (CA) | 0.1µA to 10A |
| Corrente Contínua (CC) | 0.1µA to 10A |
| Frequência | Electrical: 5Hz to 1kHz, Electronic: 0.001Hz to 10 MHz |
| Resistência | 0.1Ωto 40MΩ |
| Tensão de CA | 0.1mV to 1000V |
| Tensão de CC | 0.1mV to 1000V |
| Teste de Diodo | Yes |
| True RMS | Yes |
| Detalhes adicionais | |
|---|---|
| Categoria de Segurança | CATIII - 1000V, CATIV - 600V |
| Certificações | CE, UL |
| Classificação IP | IP67 |
| Dimensões | 7.25 × 3.25 × 2.25" (184 × 83 × 57mm) |
| Display | 4000-count segment LCD |
| Garantia | 3 years |
| Peso | 12.3oz (349g) |
| Potência | 1 × 9V battery |
