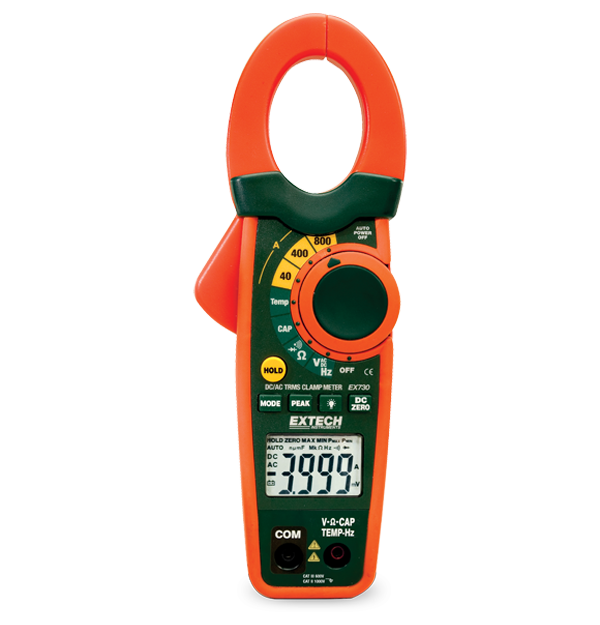

Extech EX730
800A AC/DC Clamp Meter
The Extech EX730 is an 800 A AC Clamp Meter with capacitance and frequency functions. It is capable of measuring AC/DC current and voltage, resistance, frequency, capacitance, temperature, diode, and continuity. The EX730 features double molded housing for better grip and one-handed operation, as well as a large LCD display with bright backlighting. The EX730 has a 30 mm (1.2 in) circular jaw opening for large cables (500 MCM) and comes complete with test leads, 9 V battery, Type K bead wire probe, and carrying case.
Especificações
| Especificações gerais | |
|---|---|
| Capacitância | 0.001nF to 40,000µF |
| Continuidade | Yes |
| Corrente Alternada (CA) | 0.01 to 800A |
| Corrente Contínua (CC) | 0.1 to 800A |
| Corrente de Partida | Yes |
| Frequência | 0.001 to 4kHz |
| Precisão básica da corrente alternada CA | ±2.5% |
| Precisão básica da corrente CC | ±2.5% |
| Precisão básica da frequência | ±1.5% |
| Precisão básica da tensão CA | ±1.5% |
| Precisão básica da tensão CC | ±1.5% |
| Resistência | 0.1 to 40MΩ |
| Resolução máx. da temperatura (tipo K) | -4 to 1400°F (-20 to 760°C) |
| Tamanho da garra | 1.2" (30mm), conductors up to 500MCM |
| Temperatura (Tipo N) | ±(3% of reading + 9°F/5°C) |
| Tensão de CA | 0.1mV to 600V |
| Tensão de CC | 0.1mV to 600V |
| Teste de Diodo | Yes |
| True RMS | Yes |
| Detalhes adicionais | |
|---|---|
| Categoria de Segurança | CATIII - 600V |
| Certificações | CE, UL |
| Dimensões | 9 × 3.1 × 1.9" (229 × 80 ×49mm) |
| Garantia | 2 years |
| Peso | 10.7 oz (303g) |
| Potência | 1 × 9V battery |
