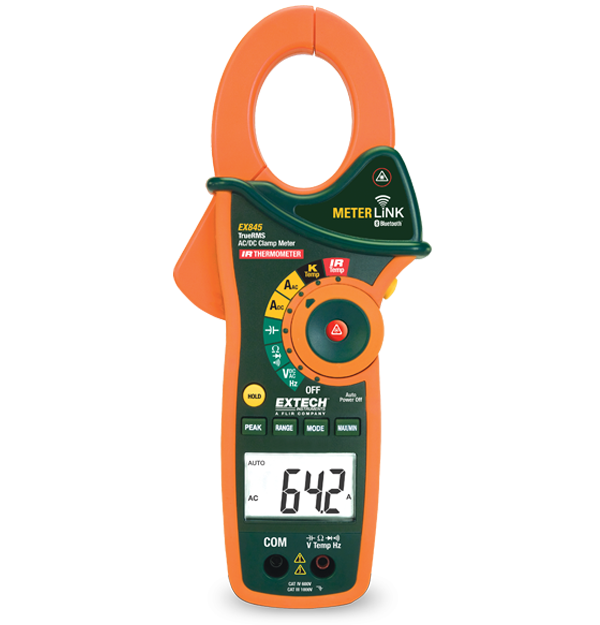

Extech EX845
1000A AC/DC True RMS Clamp/DMM with IR Thermometer and Bluetooth MeterLink™
The Extech EX845 is a CAT IV True RMS 1000 A AC/DC clamp meter/multimeter with a built in IR Thermometer and wireless capability. The MeterLink™ Bluetooth transmitter wirelessly transmits voltage and current readings to selected FLIR thermal imaging IR cameras in order to incorporate meter readings with thermal images. Manual data collection results in unnecessary complexity and risk. MeterLink eliminates this problem by allowing the thermographer to quickly take a current reading on an electrical target and associate those readings with the corresponding targets stored in an infrared image. Complete with CAT IV test leads, 9 V battery, Type K probe, pouch case, and Professional Test Lead Set.
Especificações
| Especificações gerais | |
|---|---|
| Capacitância | 0.001nF to 40,000µF |
| Continuidade | Yes |
| Corrente Alternada (CA) | 0.1 to 1000A |
| Corrente Contínua (CC) | 0.1 to 1000A |
| Corrente de Partida | Yes |
| Frequência | 0.001kHz to 4kHz |
| Precisão básica da corrente alternada CA | ±2.8% |
| Precisão básica da corrente CC | ±2.8% |
| Precisão básica da frequência | ±1.5% |
| Precisão básica da temperatura (IV) | -58 to 518°F (-50 to 270°C) |
| Precisão básica da tensão CA | ±1.5% |
| Precisão básica da tensão CC | ±2.8% |
| Resistência | 0.1 to 40MΩ |
| Resolução máx. da temperatura (IV) | ±2.0% of reading or ±4°F/±2°C |
| Resolução máx. da temperatura (tipo K) | -4 to 1400°F (-20 to 760°C) |
| Tamanho da garra | 1.7" (43mm), conductors up to 750MCM or two 500MCM |
| Temperatura (Tipo N) | ±(3% of reading + 9°F/5°C) |
| Tensão de CA | 0.1mV to 1000V |
| Tensão de CC | 0.1mV to 1000V |
| Teste de Diodo | Yes |
| True RMS | Yes |
| Detalhes adicionais | |
|---|---|
| Categoria de Segurança | CATIII - 1000V, CATIV - 600V |
| Certificações | CE, ETL |
| Dimensões | 10.6 × 4.3 × 2" (270 × 110 × 50mm) |
| Garantia | 3 years |
| Peso | 13.6oz (386g) |
| Potência | 1 × 9V battery |
Resources & Support
Certification
Extech EX845 Declaration of Conformity
User Manual
Extech EX845 User Manual
Datasheet
Extech EX845 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
