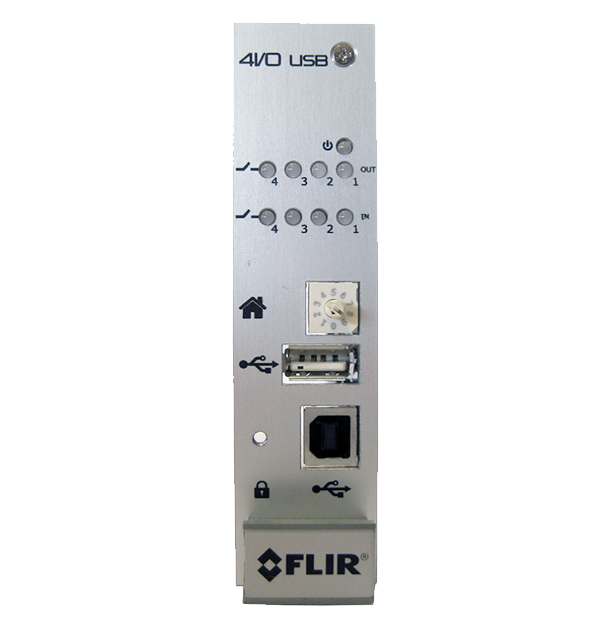

Expansion Board 4 I/O USB
Expansion Board for Connecting Extra Detection Outputs/Inputs to Controller
A placa de expansão é usada para conectar saídas e/ou entradas de detecção extras ao controlador. Ele fornece 4 contatos secos ópticos acoplados extras por USB de 4 E/S via conector EDGE (traseira, F/H, W/X, S/T, Y/Z). Compatível com TI BPL3 EDGE (PN: 10-7722) e TI BPL2 EDGE (PN: 10-7018)
Especificações
| Comunicações | |
|---|---|
| Entrada | 4 input contacts via EDGE connector (back, pins 1, 2, 3, 10) 4 input LEDs (front, green) Note: max. 20 extra detection outputs/inputs can be added via maximum 5 4 I/O USB units Note: Channel selector switch on PCB to enable inputs/outputs 5-8, 7-10, …, 21-24 |
| Ethernet | 2 × RJ45 Ethernet connectors (10/100Mbit/s auto switching) |
| Saída | 4 extra optical coupled dry contacts per 4 I/O USB via EDGE connector (back, F/H, W/X, S/T, Y/Z) Imax = 50mA, Umax = 48 V DC Close on event or open on event (setting in software) 4 output LEDs (front, green) Detection output 1-4 and common detection output |
| Eléctrico | |
|---|---|
| Potência | Power IN: 5 V DC via USB/B connector (front) Power provided by TI BPL3 EDGE/TI BPL2 EDGE (USB/A connector, front), power LED (front, bi-color green/red) Power IN: None Power consumption: ≤700 mW Current consumption: ≤140 mA @ 5 V DC |
| Dados ambientais | |
|---|---|
| Choque e Vibração | FCC: FCC Part 15 class B Shock & Vibration NEMA II specs |
| Temperatura Operacional | NEMA II specs: -34°C to +74°C (-29.2°F to 165.2°F) |
| Mecânico | |
|---|---|
| Dimensões | 115 mm × 29.5 mm × 191 mm (4.53 in × 1.16 in × 7.52 in) Standard US EDGE rack height & depth; width = single slot) |
| Peso | 100 g (3.5 oz) |
