Discontinued

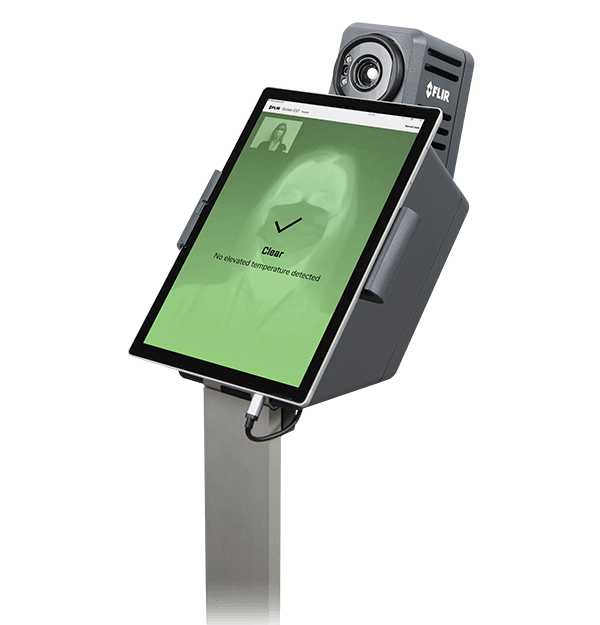

FLIR EST™ Kiosk
Skin Temperature Screening Solution
Quickly screen passengers, customers, or employees for signs of elevated skin temperature with this turnkey solution. The FLIR EST Kiosk combines the temperature measurement capabilities of a thermal imaging camera plus FLIR Screen-EST™ software with the convenience of a tablet display and floor stand. This kiosk sets up in minutes, offering fully automated, self-service screening that targets the inner canthus (corner of the eye) for accurate skin temperature measurement.
Faster, Easier Skin Temperature Screening
Ready to use right out of the box with pre-installed FLIR Screen-EST software, customizable instructions, and alert displays.
Automatically targets the inner canthus for fast, accurate screening.
Advanced factory calibration combined with relative measurement methodology ensures screening accuracy and avoids false-positives.
Especificações
| Highlighted | |
|---|---|
| Tipo de conector de E/S digital | M12 12-pin A-coded, Male (shared with external power) |
| Finalidade da Saída Digital | As function of alarm, output to external device, for example when the screening alarm is triggered |
| Saídas Digitais | 3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C); Solid state opto relay; 1x dedicated as Fault output (NC) |
| Codificação | Video stream – H.264, MPEG4, or MJPEG; Radiometric stream – Compressed JPEG-LS, FLIR radiometric |
| Interface Ethernet | Wired, Wi-Fi |
| Wi-Fi | (optional) RP-SMA, Female; Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi); Peer to peer (ad hoc) or infrastructure (network) |
| Número f | 1.3 |
| Frequência da Imagem | |
| Frequência da Imagem | 30 Hz |
| Resolução | |
| Sensibilidade Térmica/NETD | <40 mK at 30°C (86°F) |
| Precisão | ±0.3°C (±0.5°F) when used with FLIR Screen-EST™ software |
| Comunicação e armazenamento de dados | |
|---|---|
| Codificação | Video stream – H.264, MPEG4, or MJPEG; Radiometric stream – Compressed JPEG-LS, FLIR radiometric |
| Comunicação Ethernet | TCP/IP socket-based FLIR proprietary |
| Ethernet | Control, result, image, and power |
| Finalidade da Saída Digital | As function of alarm, output to external device, for example when the screening alarm is triggered |
| Interface Ethernet | Wired, Wi-Fi |
| Padrão Ethernet | IEEE 802.3 |
| Saídas Digitais | 3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C); Solid state opto relay; 1x dedicated as Fault output (NC) |
| Tensão de isolamento de E/S digital | 500 VRMS |
| Tipo de conector de E/S digital | M12 12-pin A-coded, Male (shared with external power) |
| Tipo de Conector Ethernet | M12 8-pin X-coded, Female; RP-SMA, Female |
| Tipo de Ethernet | 1000 Mbps |
| Wi-Fi | (optional) RP-SMA, Female; Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi); Peer to peer (ad hoc) or infrastructure (network) |
| Geração de imagem e óptica | |
|---|---|
| Aprimoramento de Contraste | FSX® / Histogram equalization (IR only) |
| Campo de visão (FOV) | 24° × 18° |
| Comprimento Focal | 17 mm (0.67 in) |
| Distância Focal Mínima | 0.15 m (0.49 ft) |
| Faixa Espectral | 7.5–14 µm |
| Foco | One-shot contrast, motorized, manual |
| Fonte da imagem | Video stream 0 – visual / IR / MSX®; Video stream 1 – visual; Radiometric video stream – IR |
| Formato de Pixel | Video stream – YUV411; Radiometric stream – MONO 16 |
| Frequência da Imagem | 30 Hz |
| Frequência da Imagem | |
| Identificação da Lente | Automatic |
| Matriz de Plano Focal (FPA) | Uncooled microbolometer |
| Número f | 1.3 |
| Pitch do Detector | 17 µm |
| Resolução de IV | 464 × 348 |
| Resolução de Streaming | Video stream 0 – 640 × 480 pixels; Video stream 1 – 1280 × 960 pixels; Radiometric stream – 464 × 348 pixels |
| Resolução espacial (IFOV) | 0.90 mrad/pixel |
| Sensibilidade Térmica/NETD | <40 mK at 30°C (86°F) |
| Sobreposição | Video stream 0 – With/Without; Video stream 1 – No |
| Vídeo Streaming | Bit rate set through camera web |
| Medição e análise | |
|---|---|
| Faixa de Temperatura de Objetos | 15°C to 45°C (59°F to 113°F) |
| Precisão | ±0.3°C (±0.5°F) when used with FLIR Screen-EST™ software |
| Geral | |
|---|---|
| O Pacote Inclui | Camera, Surface® Pro7 tablet, tablet stand, cables (Europe, UK, US), screening position floor sticker (T131181), FLIR Screen-EST™ license card, printed documentation |
| Peso | 8.3 kg (18 lb.) |
| Tamanho (C x L x A) | 360 × 270 × 1300 mm (14 × 11 × 51.2 in) |
| Dados ambientais e certificações | |
|---|---|
| Garantia | http://www.flir.com/warranty/ |
| Potência | |
|---|---|
| Conexão de Alimentação | Camera: M12 12-pin A-coded, Male (shared with Digital I/O) |
| Consumo de Energia | 7.5 W at 24 V DC typical; 7.8 W at 48 V DC typical; 8.1 W at 48 V PoE typical |
| Operação com Alimentação Externa | 24/48 V DC 8 W max |
| Tensão externa | Allowed range 18–56 V DC |
| Interface do usuário | |
|---|---|
| Interface da Web | Yes |
