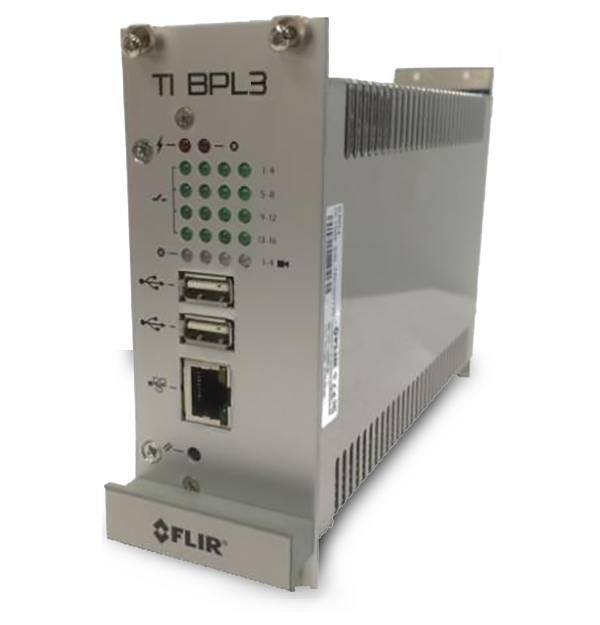

FLIR TI BPL3
3rd Generation Broadband Over Power Line Interface
Product Variations
This interface connects zone outputs from BPL3 sensors* and/or Power Line sensors to a controller, providing power and communications to BPL3 sensors and/or PL sensors. It also connects the PC to BPL3 sensors and/or PL sensors for system configuration and viewing
.*BPL3 Sensor(s): TrafiOne, ThermiCam AI, TrafiCam AI, TrafiSense AI, LaneCom T, LaneCom V
Especificações
| Visão geral do sistema | |
|---|---|
| Máximo de Câmeras | Sensores padrão 1 – 4 × BPL3 ou PL Máximo de 4 × BPL3 ou PL |
| Saídas de erro | 4 contatos secos ópticos acoplados N/O via conector de terminal na parte traseira Imáx = 50 m A, Umax = 48 V CC 1 LED de erro de interface nos 4 LEDs de status do sensor BPL3 ou PL dianteiros |
| Eléctrico | |
|---|---|
| Consumo de Corrente | ≤130 mA a 24 V CC |
| Consumo de Energia | ≤3 W |
| Tensão de Entrada | TI BPL3 EURO: 12–60 V CC ou 12–42 V CA TI BPL3 EDGE B&SIU: 12–42 V CC ou 12–30 V CA |
| Dados ambientais | |
|---|---|
| Faixa de Temperatura Operacional | Especificações NEMA II: -40 °C a 74 °C (-40 °F a 165 °F) |
| Mecânico | |
|---|---|
| Peso | TI BPL3 EURO: 570 g (1,26 lb) TI BPL3 EDGE B&SIU: 750 g (1,65 lb) |
Resources & Support
Datasheet
Flir TI BPL3 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
