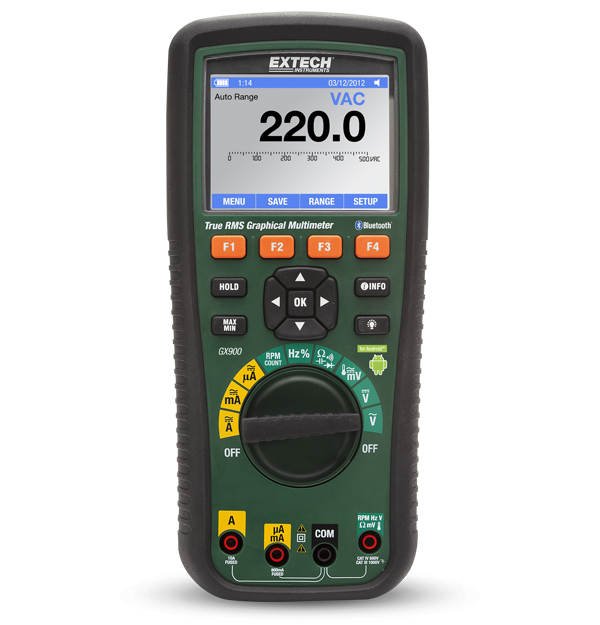

Extech GX900
True RMS Graphical MultiMeter with Bluetooth®
The Extech GX900 is a True RMS Graphical Multimeter with Bluetooth® which transmits key electrical readings to Android mobile devices. The GX900 measures AC/DC current and voltage, resistance, capacitance, frequency, temperature, duty cycle, conductance, RPM, ACV bandwidth, and diode continuity. It features a 50,000 count display with bargraph, a free Android app, data logging (to 2500 readings), Windows compatible software, peak hold, min/max/average modes, relative (%), data hold, automatic data hold, and an auto power off function. Meter comes with double molded test leads, hanging strap, Type K bead wire temperature probe, PC software, and six AA batteries.
Especificações
| Especificações gerais | |
|---|---|
| Capacitância | 0.001nF to 10mF |
| Ciclo de Trabalho | 0.1 to 99.9% |
| Condutância | 50µS |
| Continuidade | Yes |
| Corrente Alternada (CA) | 0.01µA to 10A |
| Corrente Contínua (CC) | 0.01µA to 10A |
| Frequência | Electrical: 40.00Hz to 10kHz; Electronic: 0.001Hz to 10MHz |
| Largura de banda de frequência | 100kHz |
| Resistência | 0.001Ω to 50MΩ |
| Resolução máx. da temperatura (tipo K) | -58 to 1832 °F (-50 to 1000 °C) |
| Sinal (dBm/dBV) | -70 to 60dB (nine selectable impedances) |
| Tensão de CA | 0.001mV to 1000V |
| Tensão de CC | 0.001mV to 1000V |
| Teste de Diodo | 3.2V |
| True RMS | Yes |
| Velocidade de rotação (captação indutiva) | 12,000RPM |
| Detalhes adicionais | |
|---|---|
| Categoria de Segurança | CATIII -1000V, CATIV - 600V |
| Certificações | CE, FC |
| Dimensões | 9.25 × 4.25 × 2.5" (235 × 108 × 63.5mm) |
| Display | 50000-count TFT LCD with bargraph |
| Garantia | 2 years |
| Peso | 1.85lbs (839g) |
| Potência | 6 × AA (1.5V) batteries |
Resources & Support
User Manual
Extech GX900 User Manual
Certification
Extech GX900 Declaration of Conformity
Datasheet
Extech GX900 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
