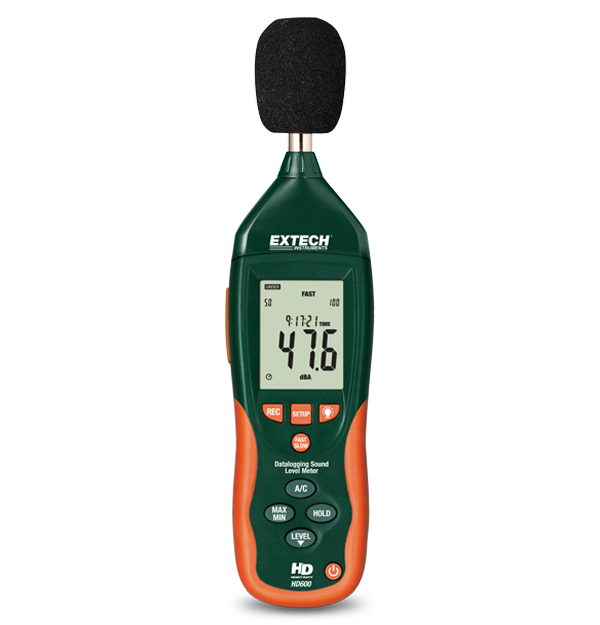

Extech HD600
Datalogging Sound Level Meter
The Extech HD600 Datalogging Sound Level Meter meets ANSI and IEC 61672-1 Type 2 standards. It has three measuring ranges from 30 dB to 130 dB with ± 1.4 dB accuracy. In addition to the LCD digital display, an analog bargraph provides easy viewing of fast changing sound levels. The unit features a rugged double molded housing and a built-in stand. Meter comes with USB cable, Windows compatible software, windscreen, tripod, hard carrying case, 9 V battery, and user manual.
Especificações
| Especificações gerais | |
|---|---|
| Faixa de som (dB) | 30 to 130dB |
| Interface para PC | USB |
| Memória | 20,000 records |
| Microfone | Condenser, 0.5” (12.7mm) |
| Ponderação | A,C |
| Precisão básica da faixa de som (dB) | ±1.4dB |
| Saída Analógica | AC/DC |
| Tempo de Resposta | Fast/Slow |
| Detalhes adicionais | |
|---|---|
| Certificações | CE |
| Dimensões | 10 × 2.9 × 2" (255 × 75 × 50mm) |
| Garantia | 3 years |
| Peso | 12.3oz (350g) |
| Potência | 1 × 9V battery |
Resources & Support
Observação: Você deve estar conectado para baixar software ou firmware. Faça login ou crie uma conta.
Software Download
Extech HD600 Software
User Manual
Extech HD600 User Manual
Datasheet
Extech HD600 Datasheet
Certification
Extech HD600 Declaration of Conformity
