ioi SD Fixed Cameras
Day and Night, Inside and Out

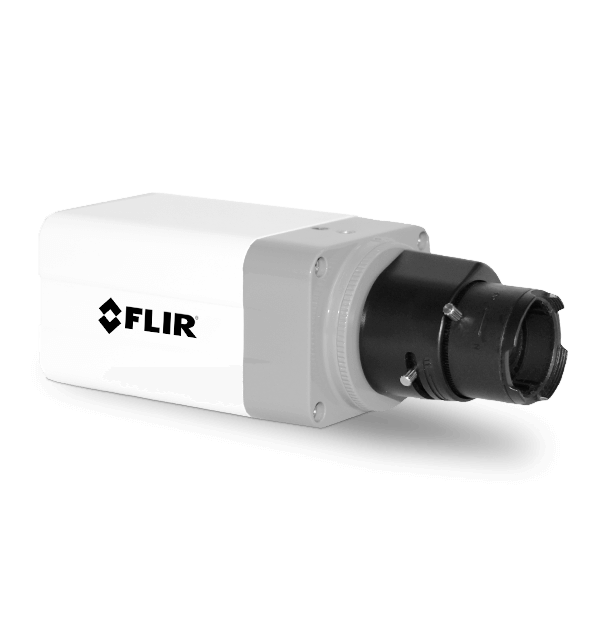

The SC1DN-S is a compact, self-contained day/night IP camera that doesn't require additional components for video analysis. The camera analyzes captured video signals and sends alarms when people, vehicles or objects cross perimeters, enter pre-defined regions, are left behind or removed from a scene. Users can set customizable rules and criteria to define specific regions and what to detect.
Especificações
| Conformidade e certificações | |
|---|---|
| Segurança | UL, CE |
| Dados ambientais | |
|---|---|
| Dados Ambientais | RoHS |
| EMC | FCC 47 CFR Part 15, Subpart B, Class A; CE Class A |
| Temperatura Operacional | 0° to 50°C (32° to 122°F) |
| Umidade de Operação | 5% to 90% (non-condensing) |
| Geral | |
|---|---|
| Consumo de Energia | 3.6W @ 12VDC; 6W @ 24VAC |
| Dimensões (L x A x P) | 73 x 60 x 133 mm/2.87 x 2.36 x 5.24" |
| Número de Canais de Análise Inteligente de Vídeo | 1.0 |
| Ruído | Dynamic range up to 82 dB |
| Sistema Operacional | Windows XP, 7, 8, and 8.1 |
| Storage on the Edge | 3,800Mb event recording |
| Taxa de Quadro H.264 (PAL/NTSC) | MPEG-4 SP: up to 30 FPS for all resolutions; H.264: up to 25/30 FPS for CIF and 2CIF, 18 FPS for VGA, and 12/15 FPS for D1 and 4CIF |
| Tensão | 12VDC, 24VAC |
| Integração do sistema | |
|---|---|
| Alarmes/Comandos | TCP/IP, HTTP |
| Conector Físico | 1x BNC 75Ω |
| Entrada de Alarme | 1x dry contact |
| Ethernet (IEEE 8023-8023u) | 1x Ethernet RJ45 interface |
| Navegadores | Internet Explorer 8, 9, 10, and 11 |
| OUT/Saída de Relé | 1x relay output (rated load 0.3A@30VDC) |
| Padrão de TV | Composite 1Vp-p - NTSC or PAL |
| Serviços e Protocolos | TCP/IP, UDP/IP, HTTP, SMTP, DHCP, DNS, SNTP |
| Câmera de luz visível | |
|---|---|
| Compensação da Retroiluminação | On/ Of |
| Exposição | Auto DC iris control, Automatic gain control (AGC) |
| Filtro de Corte de IV | Auto/manual |
| Resolução do Sensor | 640 x 480 |
| Resolução Máxima por Canal | VGA |
| Sensor | 1/4" CMOS image sensor; 540 HTVL, 640 (H) x 480 (V) effective pixels (NTSC or PAL) |
| Vídeo e gravação | |
|---|---|
| Streaming de Vídeo IP | H.264, MPEG-4 SP, MJPEG |
| Taxa de Bits | CBR, VBR |
| Vídeo Streaming | RTP/RTSP |
