Discontinued

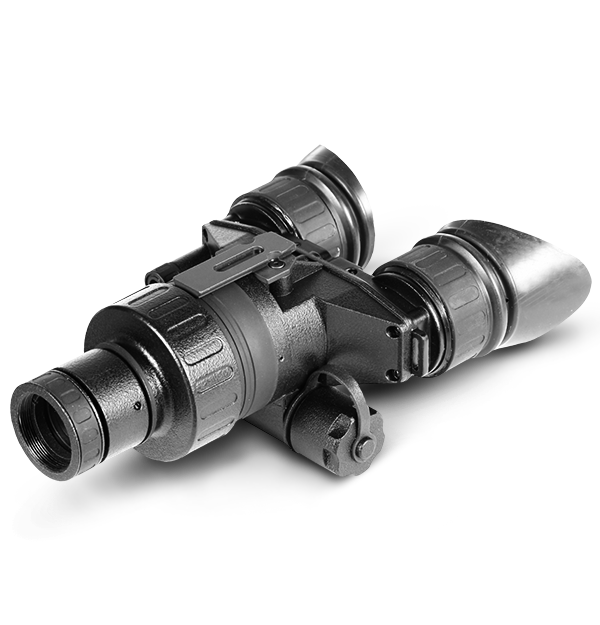

Nyx-7
Night Vision Goggles
The FLIR Nyx-7 bi-ocular goggle system offers clear and bright night vision in minimal light conditions. High-grade optics, intuitive electronics, and Gen 2+ image intensifier tubes offer reliable vision while head or helmet mounting options allow exceptional hands-free use. Available 3x or 5x magnification lenses and attachable high-powered IR illuminator add mid- to long-range viewing capability.
Reliable Vision in a Customizable System
Built-in IR illuminator and ruggedized weather-resistant housing maintain imaging performance in difficult conditions
Head and helmet mounting options, external illuminator, and available magnified lenses enhance user-customization.
Automatic brightness control and 60-hour battery life offer reliable and long-lasting night vision.
Especificações
| Sensor e óptica | |
|---|---|
| Ajuste de Dioptria | ±5 diopter |
| Alívio Ocular [mm] | 16 mm |
| Ampliação | 1x standard (3x, 5x optional) |
| Campo de Visão | 40° |
| Controle de Brilho Automático | Yes |
| Diâmetro da Pupila de Saída | 14 mm |
| Faixa de Foco | 0.25 m to Infinity |
| Geração do Tubo Intensificador de Imagem (IIT) | Gen 2+ ID (Improved Definition) |
| Iluminador de Infravermelho | Yes |
| Interrupção_da Luz Brilhante | Yes |
| Resolução | 47-54 lp/mm |
| Sistema de Lentes | F/1.2; 24 mm |
| Tipo de Fotocátodo | Multi-Alkali |
| Dados ambientais e aprovações | |
|---|---|
| Temperatura de Armazenamento | -50°C to +70°C (-58°F to +158°F) |
| Temperatura Operacional | -40°C to +50°C (-40°F to +122°F) |
| Potência | |
|---|---|
| Autonomia da Bateria | Up to 60 hours |
| Desligamento Automático | Yes |
| Fonte de Alimentação | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| Indicador de Bateria Fraca | Yes (In FOV) |
| Armazenamento de arquivos e comunicação | |
|---|---|
| Controle Remoto | - |
| UI-UX | |
|---|---|
| Controle de Ganho Manual | No |
| Cor da Retícula | - |
| Indicador de Infravermelho | Yes (In FOV) |
| Visão geral do sistema | |
|---|---|
| Ajuste de Vento_Elevação | - |
| Altura do Eixo da Luneta Acima do Trilho | - |
| Garantia | 2 Years |
| Tipo de Retícula | - |
| Características físicas | |
|---|---|
| Dimensões (C x L x A) | 150 × 102 × 70 mm (5.9 × 4 × 2.8 in) |
| Montagem em Tripé | - |
| Peso do Produto | 0.45 kg (0.9 lbs) |
| Acessórios | |
|---|---|
| Acessórios inclusos | One Lithium Battery CR123A, Soft carrying Case, Instruction Manual with Warranty Card, Goggle Kit #2, Battery adapter CR123A 3V / AA 1.5V, Lens Tissue, Packing Box |
| Acessórios Opcionais | ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #37 , MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #37,ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 3x Afocal Lens Kit: Lens #22 with Adapter #23, Helmet Mount #183 (Shroud), Adapter #59, 5x Afocal Lens with Adapter #23, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, Mil-Standard Hard Shipping/Storage Case #101, Helmet Mount #4 |
