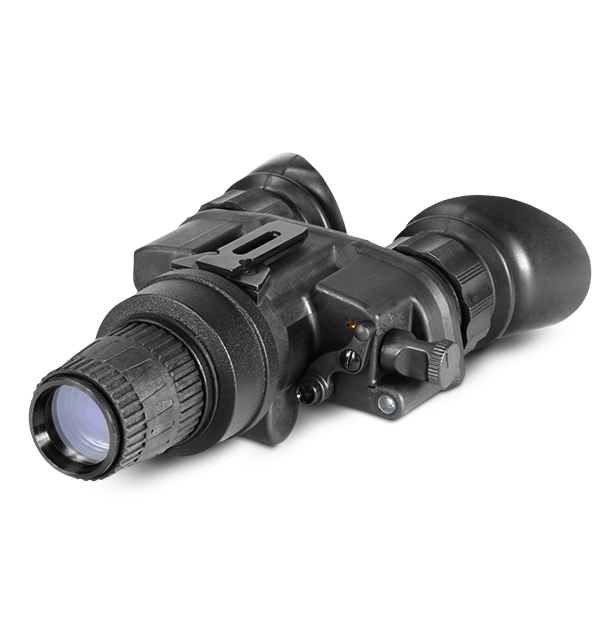

FLIR Nyx-7 Pro
Night Vision Goggles
The FLIR Nyx-7 Pro is an extremely rugged, compact bi-ocular night vision goggle system. High-grade optics and automatic brightness control provide clear nighttime images under the most trying conditions. Included flip-up head mount or optional universal helmet mount allow simple hands-free use while available 3x and 5x magnified lenses convert the Nyx-7 Pro to a long-range optic.
Especificações
| Sensor e óptica | |
|---|---|
| Ajuste de Dioptria | -6 to +2 dpt |
| Alívio Ocular [mm] | 15 mm |
| Ampliação | 1x standard (3x, 5x optional) |
| Campo de Visão | 40° |
| Controle de Brilho Automático | Yes |
| Diâmetro da Pupila de Saída | 15 mm |
| Faixa de Foco | 0.25 m to Infinity |
| Geração do Tubo Intensificador de Imagem (IIT) | Gen 2+ HD (High Definition) |
| Iluminador de Infravermelho | Yes (built-in with pivotal flood lens) |
| Interrupção_da Luz Brilhante | Yes |
| Resolução | 55-72 lp/mm |
| Sistema de Lentes | F/1.2; 27 mm |
| Tipo de Fotocátodo | Multi-Alkali |
| Dados ambientais e aprovações | |
|---|---|
| Temperatura de Armazenamento | -50°C to +70°C (-58°F to +158°F) |
| Temperatura Operacional | -40°C to +50°C (-40°F to +122°F) |
| Potência | |
|---|---|
| Autonomia da Bateria | Up to 60 hours |
| Desligamento Automático | Yes |
| Fonte de Alimentação | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| Indicador de Bateria Fraca | Yes (In FOV) |
| Armazenamento de arquivos e comunicação | |
|---|---|
| Controle Remoto | - |
| UI-UX | |
|---|---|
| Controle de Ganho Manual | No |
| Cor da Retícula | - |
| Indicador de Infravermelho | Yes (In FOV) |
| Visão geral do sistema | |
|---|---|
| Ajuste de Vento_Elevação | - |
| Altura do Eixo da Luneta Acima do Trilho | - |
| Garantia | 2 Years |
| Tipo de Retícula | - |
| Características físicas | |
|---|---|
| Dimensões (C x L x A) | 204 × 127 × 61 mm (8.0 × 5.0 × 2.4 in) |
| Montagem em Tripé | - |
| Peso do Produto | 0.49 kg (1.0 lbs) |
| Acessórios | |
|---|---|
| Acessórios inclusos | Packing Box, Instruction Manual with Warranty Card, Soft carrying Case, Battery, ARFS4 - Advanced Range Finding Stadia for 4x Lens, Battery adapter CR123A 3V / AA 1.5V, Lens Tissue, Goggle Kit #2 |
| Acessórios Opcionais | ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, 3x Afocal Lens #22, 5x Afocal Lens, MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #59, Helmet Mount #183 (Shroud), Adapter #59, PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #59, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, Helmet Mount #4, Mil-Standard Hard Shipping/Storage Case #101 |
