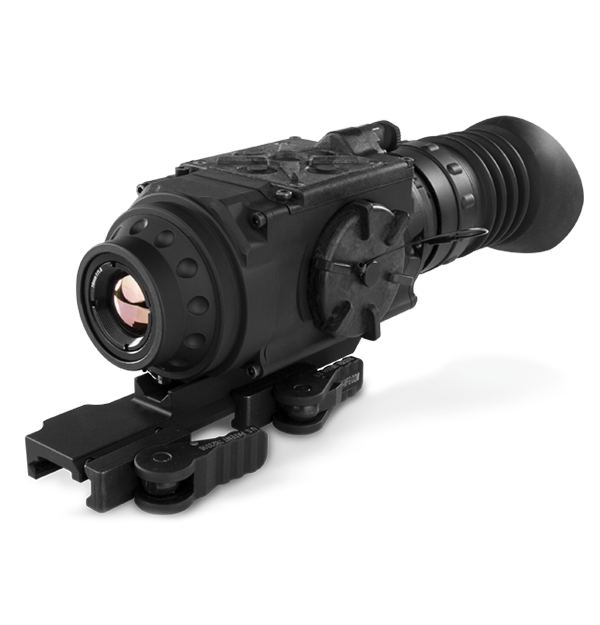

FLIR ThermoSight® PRO PTS233
Thermal Imaging Weapon Sight
Powered by the breakthrough FLIR Boson core, the ThermoSight Pro Series® PTS233 weapon sight sets the standard for thermal detection and classification. Featuring a 12 µm pixel pitch sensor and 19mm lens, the PTS233 delivers brilliant, clean thermal imaging with a 12° × 9.5° field of view for greater precision. The entire ThermoSight Pro Series offers an uncompressed video signal, a high definition display, and shot-activated video recording.
Especificações
| Highlighted | |
|---|---|
| Ampliação Óptica | 1.5x |
| Campo de Visão | 12° x 9.5° |
| Sensor e óptica | |
|---|---|
| Alívio Ocular | 45 mm |
| Ampliação Óptica | 1.5x |
| Campo de Visão | 12° x 9.5° |
| Faixa de Ajuste de Dioptria | -5 to +5 dpt |
| Faixa de Foco | 10m to infinity (not focusable) |
| Núcleo | FLIR 12µm BOSON |
| Processamento da Imagem | FLIR Proprietary Digital Detail Enhancement™ |
| Sistema de Lentes | 19 mm; F/1.0 |
| Tipo de Ajuste da Mira | Digitally Controlled |
| Tipo de Detector | 320 x 256 VOx Microbolometer |
| Dados ambientais e aprovações | |
|---|---|
| Temperatura de Armazenamento | -40°C to +60°C (-40°F to +140°F) |
| Temperatura Operacional | -20°C to +50°C (-4°F to +122°F) |
| Potência | |
|---|---|
| Alimentação Externa | Through USB-C port (5Vdc) |
| Autonomia da Bateria (em Operação) | Up to 4 hr |
| Tipo de bateria | 2 CR123A 3V Lithium batteries |
| Armazenamento de arquivos e comunicação | |
|---|---|
| Memória Interna | Up to 2.5 hours of recorded video or up to 1,000 pictures |
| Saída de Vídeo | Digital Video |
| USB – Conector C | Digital Video Out, Laser Range Finder Connections |
| UI-UX | |
|---|---|
| Botões do Painel de Controle | Configures Operational Settings: Display Brightness Control Image Palette Control Digital Zoom Control Reticle Color Control Reticle Pattern Control Boresighting Adjustment On-Screen Menu Navigation |
| Cores da Retícula | Black, White, Red, and Cyan |
| Display | Quad-VGA (1280 x 960) FLCOS |
| Frequência de Atualização do Vídeo | 60 Hz |
| Interruptor de Operação | On/ Off/ Standby Mode |
| Polaridade | White Hot, Black Hot, Rainbow High Contrast, Ironbow, Sepia, Arctic, Outdoor Alert |
| Visão geral do sistema | |
|---|---|
| Altura do Eixo da Luneta Acima do Trilho | 1.65 in (42 mm) |
| O Pacote Inclui | Thermal Weapon Sight, CR123A Battery (2), Battery Cassette, Spare Battery Cassette, USB to USB Type C Cable (3'), Lens Cloth, Quick Start Guide, and Hard Carrying Case |
| Tamanho (C x L x A) | 8.7" × 2.7" × 3.3" (220 x 68 x 84 mm) |
| Tipo de Montagem na Arma | Picatinny, MIL-STD 1913, and Weaver Rails |
| Tipo de Retícula | Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair, Crossdash, and "No Reticle" |
| Zoom | 1×, 2×, 4× |
| Zoom Digital | 2x, 4x |
| Características físicas | |
|---|---|
| Cor (caixa) | Black |
| Peso | 0.65 kg (1.44 lbs) |
