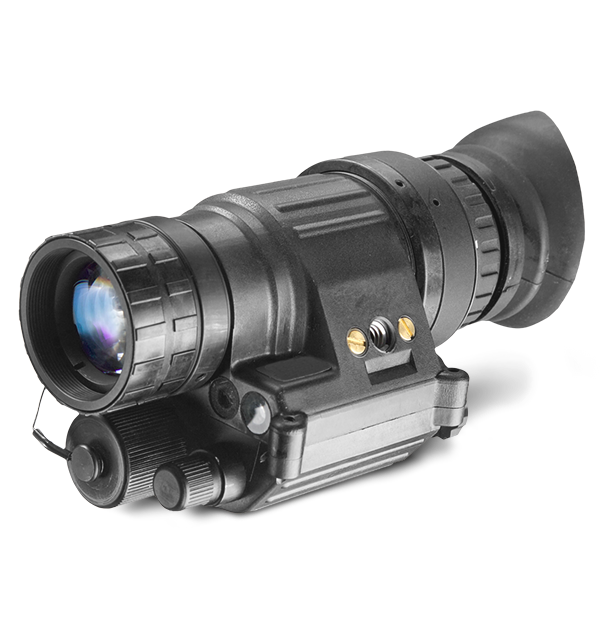

FLIR PVS-14-51
51° Night Vision Monocular
The FLIR PVS-14-51 single-tube night vision system brings a wide 51-degree field of view to the tough, military-trusted AN/PVS-14 housing. Head and helmet mounting promote hands-free operation while a maximized field of view enhances awareness and minimizes necessary movement. Built-in IR illuminator allows clear, covert vision in complete darkness.
Wide-Angle Advantage Meets Battle-Tested Design
51-degree lens provides a 28% increase in scene size over comparable 40-degree models.
Compact AN/PVS-14 housing is a trusted, longstanding night vision favorite of US military and law enforcement professionals.
Maintain a tactical advantage in the toughest lighting conditions with built-in IR illuminator and manual gain control.
Especificações
| Highlighted | |
|---|---|
| Temperatura Operacional | -40°C to +50°C (-40°F to +122°F) |
| Sensor e óptica | |
|---|---|
| Ajuste de Dioptria | -6 to +4 dpt |
| Alívio Ocular [mm] | - |
| Ampliação | 1x standard (3x, 5x optional) |
| Campo de Visão | 51° |
| Controle de Brilho Automático | No |
| Diâmetro da Pupila de Saída | - |
| Faixa de Foco | 0.25 m to Infinity |
| Geração do Tubo Intensificador de Imagem (IIT) | Gen 3 High Performance IIT PINNACLE MG |
| Iluminador de Infravermelho | Yes (built-in with pivotal flood lens) |
| Interrupção_da Luz Brilhante | Yes |
| Resolução | - |
| Sistema de Lentes | F/1.26; 19mm |
| Tipo de Fotocátodo | GaAs |
| Dados ambientais e aprovações | |
|---|---|
| Temperatura de Armazenamento | -50°C to +50°C (-58°F to +122°F) |
| Temperatura Operacional | -40°C to +50°C (-40°F to +122°F) |
| Potência | |
|---|---|
| Autonomia da Bateria | Up to 50 hours |
| Desligamento Automático | Yes |
| Fonte de Alimentação | One AA battery |
| Indicador de Bateria Fraca | Yes (In FOV) |
| Armazenamento de arquivos e comunicação | |
|---|---|
| Controle Remoto | - |
| UI-UX | |
|---|---|
| Controle de Ganho Manual | Yes |
| Cor da Retícula | - |
| Indicador de Infravermelho | Yes (In FOV) |
| Visão geral do sistema | |
|---|---|
| Ajuste de Vento_Elevação | - |
| Altura do Eixo da Luneta Acima do Trilho | - |
| Garantia | 2 Years |
| Tipo de Retícula | - |
| Características físicas | |
|---|---|
| Dimensões (C x L x A) | 158 × 51 × 60 mm (6.2 × 2.0 × 2.4 in) |
| Montagem em Tripé | - |
| Peso do Produto | 0.32 kg (0.7 lbs) |
| Acessórios | |
|---|---|
| Acessórios inclusos | Packing Box, Soft Carrying Case, Lens Tissue, Instruction Manual with Warranty Card, Day Light Filter, Sacrificial Window, Demist Shields, Shoulder Strap, Tethering Cord, Helmet/Head Mount Adapter, Head Mount Assembly, Brow Pads |
| Acessórios Opcionais | MICH Helmet Mount Assembly USA #107 (PVS-7, PVS-14), PASGT Helmet Mount Assembly USA #108 (PVS-7, PVS-14), Weapons Mount #109 (PVS14/6015), Extended Rail Adapter #85, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 3x Afocal Magnifier Lens #99, 5x Afocal Magnifier Lens #100, 3x Afocal Lens #22 with Adapter #24/#25 (PVS-7, PVS-14), 5x Afocal Lens with Adapter #24/#25 (PVS-7, PVS-14), IR850XLR Afocal Doubler, IR850-XLR Detachable LED Extra Long Range Infrared Illuminator, Mil-Standard Hard Shipping/Storage Case #101 |
