Discontinued
QL320
Sistema de imagens ópticas de gás quantitativo para câmeras de imagens ópticas de gás Série G da FLIR (Gx620/Gx320/G620)
The QL320 by Providence Photonics is a quantitative optical gas imaging (QOGI) system that allows surveyors to measure the leak rates for methane and other hydrocarbons. This eliminates the need for secondary sampling with a toxic vapor analyzer or similar tool. Plus, the QL320 does not require close contact with the gas in order to measure emission rates, making it a safer solution for quantifying gas leaks.
With the QL320, you can determine mass leak rates (g/h or lb/h) or volumetric leak rates (cc/min or L/min)for most hydrocarbon gases. Measure the size of fugitive emissions from safe distances, as far as 100 feet.
The QL320 has the built-in tools needed to validate leak surveys, plus a Δ temperature screening tool to determine suitablility of background conditions. In-field reporting includes archiving of measurements, colorized video and raw data for analysis and post-processing.

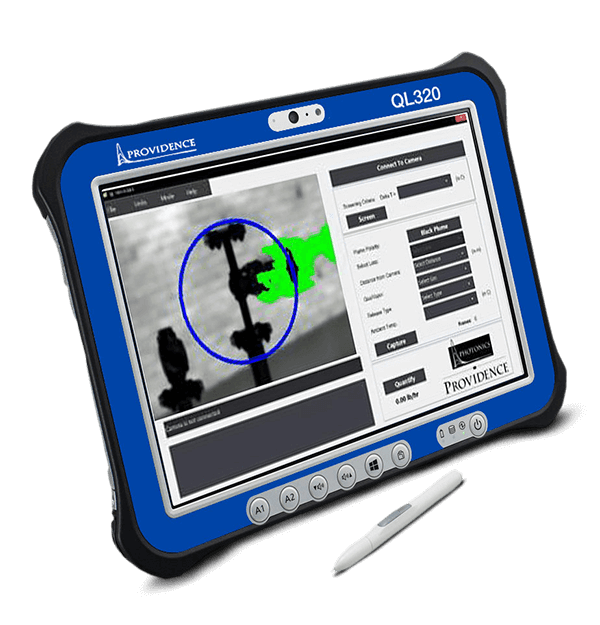

This tablet-based system is rugged enough to use in gas fields, refineries, and other industrial settings. The dust- and water-tight touchscreen provides high contrast for easy reading in outdoor conditions.
Especificações
| Geração de imagem e óptica | |
|---|---|
| Câmeras compatíveis | FLIR G620, FLIR Gx320, FLIR Gx620 |
| Modos de Imagem | Single image snapshot with colorized plume and quantitative result |
| Resolução do Display | 1920 × 1200 WUXGA |
| Tamanho do Display | 256.5 mm (10.1 in) |
| Medição e análise | |
|---|---|
| Ferramentas de Medição | Δ temperature screening, on-screen plume color highlight, batch recording, field gas calibration |
| Modos de Medição | Mass leak rates (lb/h or g/h), volumetric leak rates (cc/min or L/min) |
| Comunicação e armazenamento de dados | |
|---|---|
| Entrada | On-screen QWERTY keyboard, electronic waterproof stylus |
| Geral | |
|---|---|
| Peso | 1.36 kg (3 lb) |
| Tamanho | 270 × 188 × 19 mm (10.6 × 7.4 × 0.75 in) |
| Interface do usuário | |
|---|---|
| Tecnologia do Display | Panasonic Toughpad FZ-G1 |
| Tela sensível ao toque | 10-point gloved multi-touch + digitizer |
| Potência | |
|---|---|
| Tipo de bateria | Li-ion rechargeable battery |
| Dados ambientais e certificações | |
|---|---|
| Dados Ambientais | MIL-STD-810G certified, IP65-certified sealed all-weather design |
