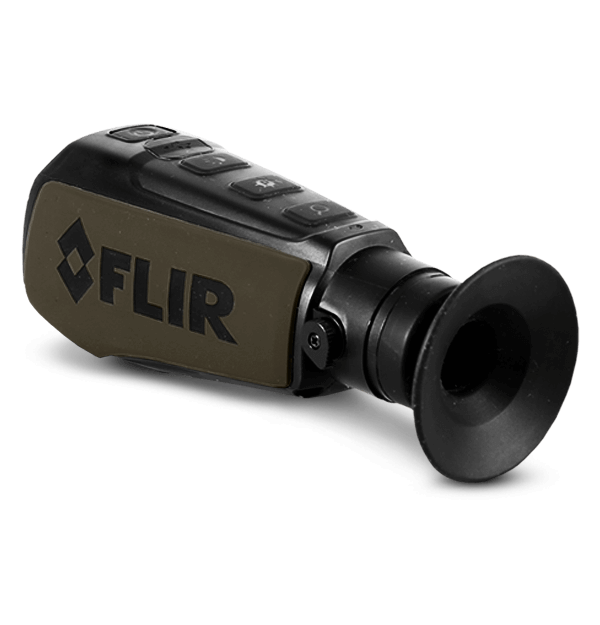

Scout III
Thermal Imaging Monocular
Scout III captures sharp thermal imaging at a fast framerate for smooth, impeccable vision on running targets and from moving vehicles. Designed to increase situational awareness at any time of day, Scout III can detect humans, animals, and objects in complete darkness, haze, or through glaring light. A rugged IP-67 rated housing stands up to harsh weather and drops, equipping law enforcement professionals, hunters, and outdoor enthusiasts with reliable thermal imaging in tough conditions.
Especificações
| Highlighted | |
|---|---|
| Sensibilidade Térmica | <50 mK @ f/1.0 |
| Sensor e óptica | |
|---|---|
| Campo de visão (FOV) | 18° × 14° NTSC |
| Comprimento Focal | 33mm Fixed Focus |
| Processamento da Imagem | FLIR Proprietary Digital Detail Enhancement ™ |
| Sensibilidade Térmica | <50 mK @ f/1.0 |
| Tipo de Detector | 640 × 512 VOx Microbolometer |
| Dados ambientais e aprovações | |
|---|---|
| Classificação | IP-67, Submersible |
| Classificação do Teste de Queda | 1 m |
| Temperatura de Armazenamento | -40 ° F to 140 ° F (-40 ° C to 60 ° C) |
| Temperatura Operacional | -4 ° F to 122 ° F (-20 ° C to 50 ° C) |
| Potência | |
|---|---|
| Autonomia da Bateria | > 5 Hours |
| Tempo de Inicialização | < 1.5 seconds |
| Tipo de bateria | Internal Li-Ion Cell |
| Armazenamento de arquivos e comunicação | |
|---|---|
| Saída de Vídeo | NTSC composite video (Switchable to PAL w/GUI) - 320 Model only |
| UI-UX | |
|---|---|
| Botão de Zoom | 2×, 4× Zoom |
| Botão Liga/Desliga | On / Off |
| Brilho | Adjusts display Brightness Setting |
| Display Integrado | 640 × 480 LCD Display |
| Frequência de Atualização do Vídeo | 30 Hz NTSC |
| Lanterna | LED Enabled during Power off state |
| Polaridade | White Hot/Black Hot/InstAlert ™ ; Selectable |
| Polaridade da imagem | White Hot/Black Hot/InstAlert ™ ; Selectable |
| Preto Quente e Branco Quente | BH/WH/InstAlert™ |
| Simbologia na Tela | Standard |
| Tela Inicial | Generic |
| Visão geral do sistema | |
|---|---|
| Faixa de Ondas | 7.5 - 13.5 µm |
| Garantia | 2 years standard, 3 years with product registration |
| O Pacote Inclui | Handheld Thermal Camera, USB Power Adapter/Charger, Wrist strap, Custom Video out cable (320 & 640 versions), USB Cable, Quick Start Guide, Molle bag |
| Peso [com lente] | 12 oz (340 g) |
| Tamanho (C x L x A) | 6.70" × 2.31" × 2.44" |
