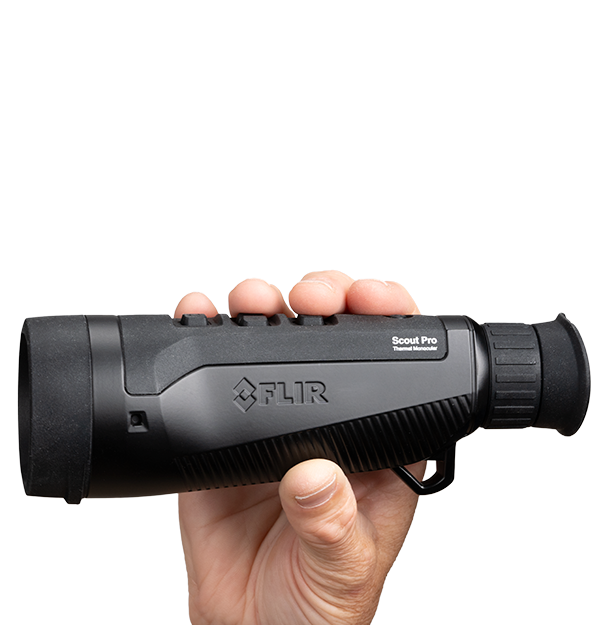

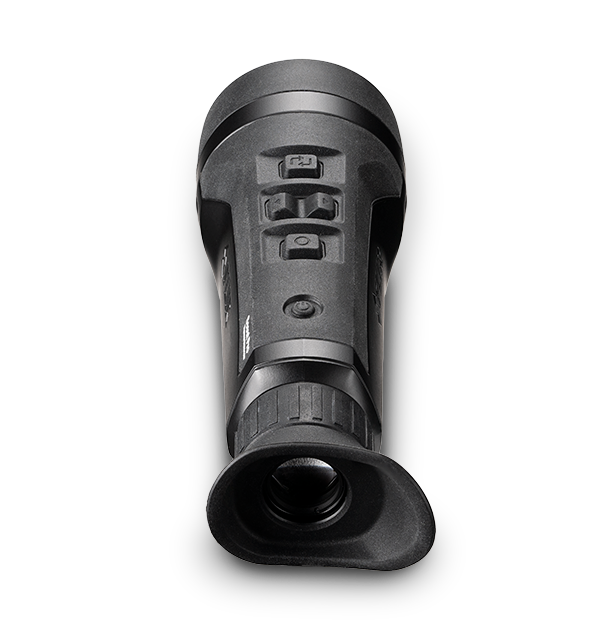

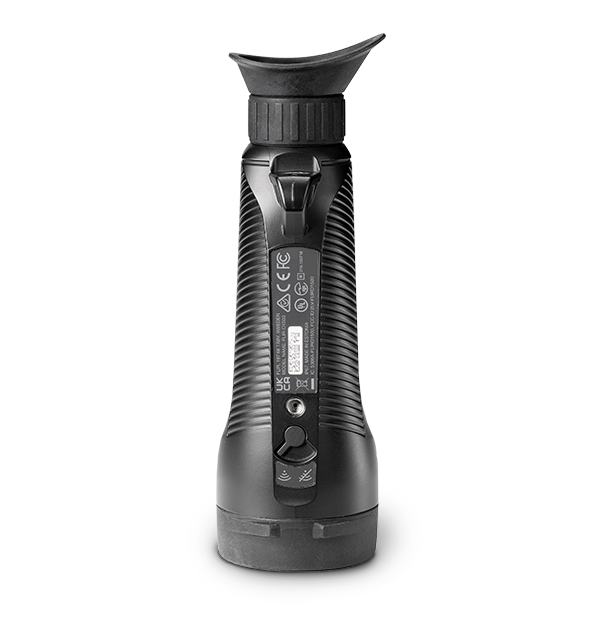

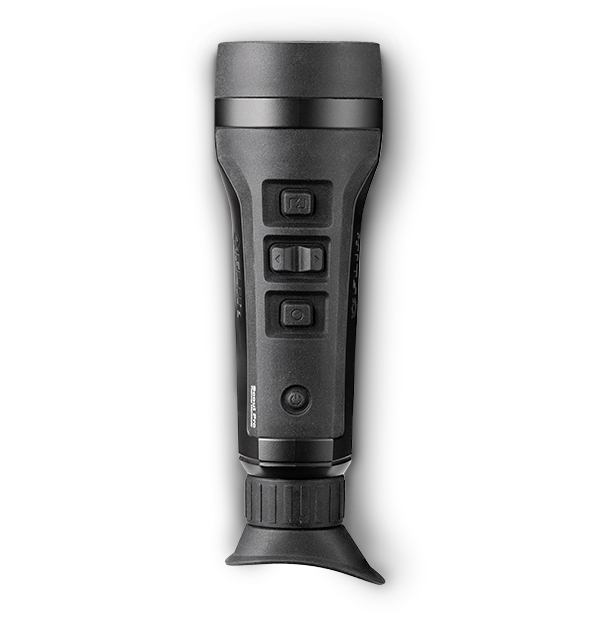

FLIR Scout Pro™
Thermal Imaging Monocular for Law Enforcement Professionals
The FLIR Scout Pro is the next-generation thermal monocular, designed for and with law enforcement and public safety professionals. Built for reliability in high-stakes missions where time and focus are critical, the Scout Pro offers simplified controls so you never get lost in menus, robust durability to withstand harsh conditions, and live view capabilities to keep your team informed in real-time. With a fixed-focus lens featuring a 32° field of view—the widest available on the market—the Scout Pro allows for rapid area sweeps, identifying human heat signatures up to 500 meters away, even in darkness. Advanced image enhancements are tailored specifically for human detection, ensuring you never miss a target.
Designed for the Heat of the Action
See people in the dark from up to 500 m away, with a wide 32° field of view for maximum coverage and faster sweeps of areas.
Built for the toughest missions, the Scout Pro is ideal for law enforcement, search and rescue, and critical public safety operations.
Ready in seconds with an intuitive interface, single-handed operation, and effortless control, even in high-pressure situations.
Specifications
| Highlighted | |
|---|---|
| Detector Resolution | 640 × 480, vox microbolometer |
| Thermal Sensitivity | <38 mK @ 30°C (86°F) |
| Display resolution | XGA 1024 × 768 |
| Bluetooth | BLE |
| Video Recording | Yes |
| WiFi | Yes |
| Sensor & Optical | |
|---|---|
| Detector Frame Rate | 30 Hz |
| Detector Resolution | 640 × 480, vox microbolometer |
| Field of view [FOV] | 32° |
| Focal Length | 19 mm |
| Focus | Fixed focus |
| Image Processing | FLIR FSX™ 2.0 |
| Image Storage Capacity | >1000 |
| Minimum Focus Distance | 4 m (13 ft) |
| Pixel Pitch | 17 µm |
| Spectral Range | 7.5 µm – 13.5 µm |
| Thermal Sensitivity | <38 mK @ 30°C (86°F) |
| Environmental & Approvals | |
|---|---|
| Operating Temperature | −15°C to 45°C (5°F to 113°F) |
| Power | |
|---|---|
| Battery Charging | 2 h at 80% |
| Battery Life | Up to 6 hours |
| Battery Type | Internal Li-Ion cell |
| File Storage & Communication | |
|---|---|
| Bluetooth | BLE |
| Disable Radio and Wi_Fi | Physical On/Off switch |
| Image Storage Mode | IR |
| IR File Formats | Standard JPEG |
| Media Gallery | Scout Pro App (iOS only) |
| Non_radiometric IR video recording | MPEG4 AVC (ITU-T H.264) |
| Storage Capacity | 16 GB |
| Storage Media | Embedded flash |
| USB_C Connector | Streaming: UVC (YUV422 no overlay) |
| Video Recording | Yes |
| Video Streaming | Yes |
| WiFi | Yes |
| UI-UX | |
|---|---|
| Display resolution | XGA 1024 × 768 |
| System Overview | |
|---|---|
| Color palettes | White Hot, Black Hot, Sepia, Heat |
| Package Includes | Handheld thermal camera, USB-C cable, 1 × standard eyecup, 1 × asymmetrical eyecup, pouch |
| Size [L x W x H] | 19.2 cm × 6.4 cm × 6.4 cm (7.5 in × 2.5 in × 2.5 in) |
| Warranty | 2 years + an additional 3 years after registration support.flir.com/scout-pro |
| Zoom | 2x, 4x, 6x, 8x |
| Physical | |
|---|---|
| Color [housing] | Black |
| Display Frame Rate | 60 Hz |
| Drop Rating [Drop Test Rating] | 2 m (6 ft 7 in) |
| IP Rating | IP67 |
| Tripod Mounting | UNC ¼”-20 |
| Weight [battery included] | 498 g (1 lb 2 oz) |
