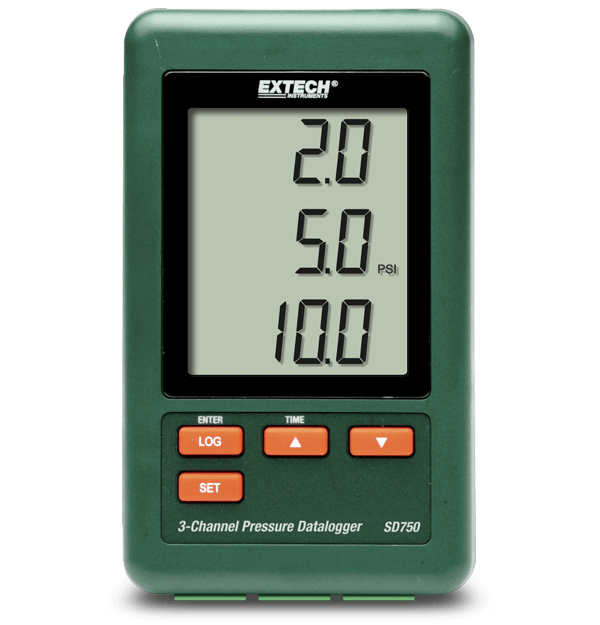

Extech SD750
3-Channel Pressure Datalogger
The Extech SD750 3-Channel Pressure Datalogger allows technicians to easily monitor and record pressure levels from three sources using one meter instead of three. Applications include pressure measurements from hydraulic, pneumatic, air compressor, and process gas systems, as well as other industrial applications. Complete with six AAA batteries, 2G SD card, universal AC adaptor, three connectors, and a mounting bracket.
Especificações
| Especificações gerais | |
|---|---|
| Intervalo de registro de dados | 5, 10, 30, 60, 120, 300, 600 seconds or automatic |
| Memória | 4GB SD memory card |
| Pressão (atmosfera) | 0.002 to 1.974 (30psi transducer), 0.01 to 9.87 (150psi transducer), 0.02 to 19.74 atm (300psi transducer) |
| Pressão (bar) | 0.002 to 2 (30psi transducer), 0.01 to 10 (150psi transducer), 0.02 to 20 bar (300psi transducer) |
| Pressão (kgcm²) | 0.002 to 2.040 (30psi transducer), 0.01 to 10.19 (150psi transducer), 0.02 to 20.40 kgcm |
| Pressão (kPa) | 0.2 to 200.0 (30psi transducer), 1 to 1000 (150psi transducer), 2 to 2000 kPa (300psi transducer) |
| Pressão (mH₂O) | 0.02 to 20.40 (30psi transducer), 0.1 to 101.9 (150psi transducer), 0.2 to 204.0 mH₂O (300psi transducer) |
| Pressão (mmHg) | 2 to 1500 (30psi transducer), 10 to 7500 (150psi transducer), 20 to 15000 mmHg (300psi transducer) |
| Pressão (polH2O) | 1 to 802 (30psi transducer), 5 to 4010 (150psi transducer), 10 to 8020 inH₂O (300psi transducer) |
| Pressão (polHg) | 0.05 to 59.05 (30psi transducer), 0.2 to 295.2 (150psi transducer), 0.5 to 590.5 inHg (300psi transducer) |
| Pressão (psi) | 0.02 to 30 (30psi transducer), 0.2 to 150 (150psi transducer), 0.2 to 300 psi (300psi transducer) |
| Detalhes adicionais | |
|---|---|
| Certificações | CE, NIST (limited to certain functions) |
| Dimensões | 5.2 × 3.1 × 1.3" (132 × 80 × 32mm) |
| Garantia | 2 years |
| Peso | 7oz (199g) |
| Potência | 6 × AAA (1.5V) batteries |
Recursos e suporte
Datasheet
Extech SD750 Datasheet
User Manual
Extech SD750 User Manual
Certification
Extech SD750 Declaration of Conformity
