Discontinued

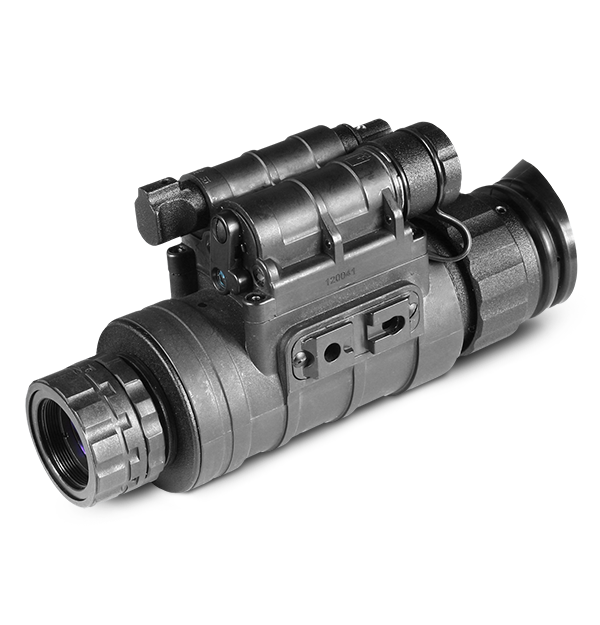

FLIR Sirius
Night Vision Monocular
The FLIR Sirius night vision monocular offers excellent Gen2+ performance and numerous high-tech features. With manual gain control, built-in IR illuminator, and bright-light shutoff, the Sirius serves the needs of both recreational hunters and law enforcement professionals. Flexible mounting options and external accessories increase device capability while a tough composite housing stands up to wear and tear.
Affordable Full-Featured Performance
Head, helmet, and weapon mounting options improve mission capability.
Manual gain control, onboard IR illuminator, and bright light shutdown enhance vision and protect intensifier tubes.
Available magnifying lenses and extra long-range IR illuminator enhance image clarity over long distances.
Especificações
| Highlighted | |
|---|---|
| Temperatura Operacional | -40°C to +50°C (-40°F to +122°F) |
| Sensor e óptica | |
|---|---|
| Ajuste de Dioptria | ±5 diopter |
| Alívio Ocular [mm] | 21.5 mm |
| Ampliação | 1x standard (3x, 5x optional) |
| Campo de Visão | 40° |
| Controle de Brilho Automático | Yes |
| Diâmetro da Pupila de Saída | 10 mm |
| Faixa de Foco | 0.25 m to Infinity |
| Geração do Tubo Intensificador de Imagem (IIT) | GEN 2+ QS ("Quick Silver" White Phosphor) MG |
| Iluminador de Infravermelho | Yes (built-in with pivotal flood lens) |
| Interrupção_da Luz Brilhante | Yes |
| Resolução | 47-54 lp/mm |
| Sistema de Lentes | F/1.2; 24 mm |
| Tipo de Fotocátodo | Multi-Alkali |
| Dados ambientais e aprovações | |
|---|---|
| Temperatura de Armazenamento | -50°C to +70°C (-58°F to +158°F) |
| Temperatura Operacional | -40°C to +50°C (-40°F to +122°F) |
| Potência | |
|---|---|
| Autonomia da Bateria | Up to 60 hours |
| Desligamento Automático | Yes |
| Fonte de Alimentação | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| Indicador de Bateria Fraca | Yes (In FOV) |
| Armazenamento de arquivos e comunicação | |
|---|---|
| Controle Remoto | - |
| UI-UX | |
|---|---|
| Controle de Ganho Manual | Yes |
| Cor da Retícula | - |
| Indicador de Infravermelho | Yes (In FOV) |
| Visão geral do sistema | |
|---|---|
| Ajuste de Vento_Elevação | - |
| Altura do Eixo da Luneta Acima do Trilho | - |
| Garantia | 2 Years |
| Tipo de Retícula | - |
| Características físicas | |
|---|---|
| Dimensões (C x L x A) | 182× 56 × 79 mm (7.2 × 2.2 × 3.1 in) |
| Montagem em Tripé | - |
| Peso do Produto | 0.46 kg (1.0 lbs) |
| Acessórios | |
|---|---|
| Acessórios inclusos | Instruction Manual with Warranty Card, Soft carrying Case, Packing Box, Battery, Battery adapter CR123A 3V / AA 1.5V, Lens Tissue |
| Acessórios Opcionais | Swing Arm #172, AIM PRO - Advanced Integrated Mount Pro, PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #37, MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #37, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 7x Lens # 17, Helmet Mount #183 (Shroud), Tactical Goggle Kit - Wilcox L4 G24 and 3 Hole Shroud Crye Precision Nightcap and Swing Arm #172, 5x Afocal Lens with Adapter #23, 3x Afocal Lens Kit: Lens #22 with Adapter #23, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, AIM Pro-L - Advanced Integrated Mount Pro, Mil-Standard Hard Shipping/Storage Case #101, Swing Arm #37, Goggle Kit #2, QRM - Quick Release Picatinny Mount Adapter #26/#142, Universal Camera Adapter #45, Extended Rail Adapter #85, Helmet Mount #4 |
