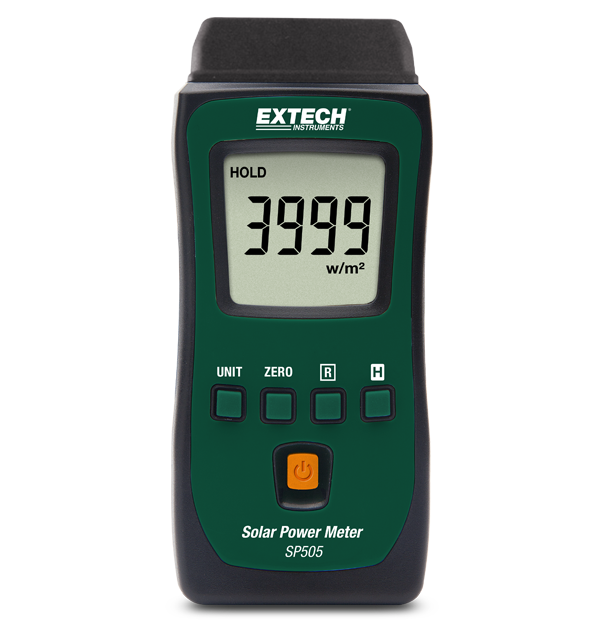

Extech SP505
Pocket Solar Power Meter
Extech’s SP505 measures solar power level from sunlight outdoors to determine the best location of solar panel and solar water heater installations. It is also used indoors by window manufacturers, the automotive industry, and remodeling home owners to check the level of solar radiation transmission through various glass thicknesses and degrees of tinting to use for window installations. The convenient, pocket-sized meter with a built-in precision solar light sensor is easy-to-use wherever you go.
Especificações
| Especificações gerais | |
|---|---|
| Energia solar | 3999 W/m², 634 BTU/(ft²×h) |
| Precisão básica da energia solar | ±10 W/m², ±3 BTU/(ft²×h) or ±5% (whichever is greater) |
| Resolução máx. da energia solar | 1 W/m², 1 BTU/(ft²×h) |
| Resposta Espectral | 400 nm to 1100 nm |
| Detalhes adicionais | |
|---|---|
| Certificações | CE |
| Dimensões | 4.3 × 1.9 × 1" (108 × 48 × 23mm) |
| Garantia | 2 years |
| Peso | 2.8oz (80g) |
| Potência | 2 × AAA (1.5V) batteries |
Resources & Support
Datasheet
Extech SP505 Datasheet
User Manual
Extech SP505 User Manual
