Discontinued

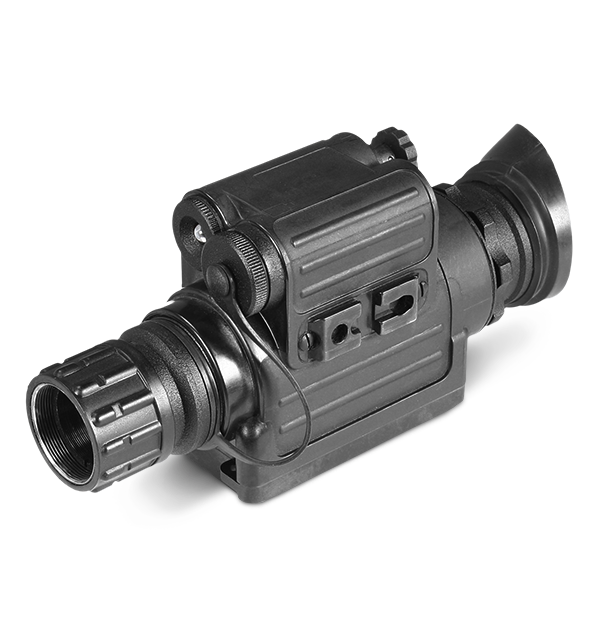

FLIR Spark
Night Vision Monocular
The FLIR Spark is a compact night vision monocular for enhancing awareness in minimal light conditions. A rugged composite housing and built-in IR illuminator allow Spark to capture sharp imagery in challenging weather conditions or complete darkness. Optional 3x and 5x optical zoom lenses and detachable high-power IR illuminator are available for long-range wildlife viewing.
Classic, Compact Night Vision
Rugged CORE intensifier tube and onboard IR illuminator allow continuous surveillance in tough conditions.
Head, helmet, and weapon mounting options allow simple handsfree operation.
Detachable optical magnification lenses and XLR IR illuminator boost long-range performance.
Especificações
| Highlighted | |
|---|---|
| Temperatura Operacional | -40°C to +50°C (-40°F to +122°F) |
| Sensor e óptica | |
|---|---|
| Ajuste de Dioptria | ±5 diopter |
| Alívio Ocular [mm] | 20 mm |
| Ampliação | 1x standard (3x, 5x optional) |
| Campo de Visão | 35° |
| Controle de Brilho Automático | No |
| Diâmetro da Pupila de Saída | 8 mm |
| Faixa de Foco | 0.25 m to Infinity |
| Geração do Tubo Intensificador de Imagem (IIT) | CORE |
| Iluminador de Infravermelho | Yes |
| Interrupção_da Luz Brilhante | No |
| Resolução | 60-70 lp/mm |
| Sistema de Lentes | F/1.7; 35 mm |
| Tipo de Fotocátodo | N/A |
| Dados ambientais e aprovações | |
|---|---|
| Temperatura de Armazenamento | -50°C to +70°C (-58°F to +158°F) |
| Temperatura Operacional | -40°C to +50°C (-40°F to +122°F) |
| Potência | |
|---|---|
| Autonomia da Bateria | Up to 40 hours |
| Desligamento Automático | No |
| Fonte de Alimentação | CR123 Lithium 3V (1) or CR123 type rechargeable batteries with voltage 3.2V (1) |
| Armazenamento de arquivos e comunicação | |
|---|---|
| Controle Remoto | - |
| UI-UX | |
|---|---|
| Controle de Ganho Manual | No |
| Cor da Retícula | - |
| Indicador de Infravermelho | Yes (Led) |
| Visão geral do sistema | |
|---|---|
| Ajuste de Vento_Elevação | - |
| Altura do Eixo da Luneta Acima do Trilho | - |
| Garantia | 2 Years |
| Tipo de Retícula | - |
| Características físicas | |
|---|---|
| Dimensões (C x L x A) | 181× 49 × 82 mm (7.1 × 1.9 × 3.2 in) |
| Montagem em Tripé | - |
| Peso do Produto | 0.37 kg (0.8 lbs) |
| Acessórios | |
|---|---|
| Acessórios inclusos | Soft carrying Case, One Lithium Battery CR123A, Packing Box, Lens Tissue, Instruction Manual with Warranty Card |
| Acessórios Opcionais | PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #37, Swing Arm #172, MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #37, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, AIM PRO - Advanced Integrated Mount Pro, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, Helmet Mount #170 (Shroud), 5x Afocal Lens with Adapter #23, 3x Afocal Lens Kit: Lens #22 with Adapter #23, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, AIM Pro-L - Advanced Integrated Mount Pro, Goggle Kit #1, Mil-Standard Hard Shipping/Storage Case #101, Swing Arm #37, Helmet Mount #3, Universal Camera Adapter #45, QRM - Quick Release Picatinny Mount Adapter #26/#142, Extended Rail Adapter #85 |
