TrafiBot AI

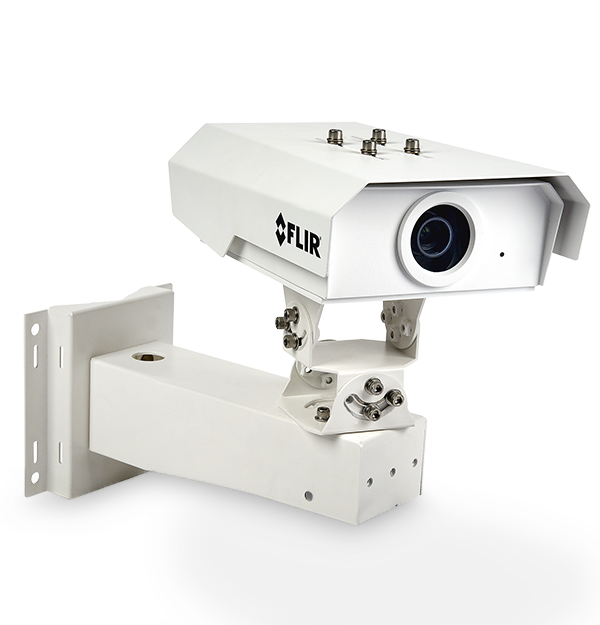

Premium Optical IP Camera with Embedded AI Deep Learning for Automatic Incident Detection
FLIR TrafiBot AI supports intelligent traffic management and improves roadway safety through the use of embedded AI and powerful FLIR AID algorithms, making automatic incident detection and traffic data collection more reliable than ever. This CCTV traffic solution outperforms non AI-based traffic cameras due to its ability to learn and refine how it evaluates events. TrafiBot AI increases its capacity to detect incidents within a scene using its patented 3D world tracker, anticipating speed and trajectory even when targets become obscured by other traffic. With a built-in tilt sensor to cut installation time in tunnels, a non-corrosive, stainless steel housing, and enhanced 4k resolution, FLIR TrafiBot AI is the efficient solution for enhanced road management in inter-urban environments.
TrafiBot AI uses two embedded AI models to classify fallen objects and identify vehicles and vulnerable road users; plus, it employs FLIR-patented 3D tracking to detect sudden lane changes, tailgating, or wrong-way drivers without direct line of sight.
Install TrafiBot AI quickly thanks to a three-axis swivel that pans, tilts, and rolls, eliminating the need for custom adapter plates.
TrafiBot AI connects seamlessly with FLIR Cascade and can send an alert and a short, high resolution video clip of the scene for immediate analysis.
Specifications
| Communications | |
|---|---|
| Interfaces | 10/100/1000 Mbps |
| Outputs | 2 (NO/NC) |
| RJ45 Interface | 10/100/1000 Mbps |
| Supported Protocols | IPv4, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, SMTP, DHCP, IGMP, SNMP, QoS, ONVIF, TLS1.2, IEEE802.1x |
| Electrical | |
|---|---|
| Input Voltage | 24 V AC/DC PoE+ 802.3 at |
| Power Consumption | 12 W heater off (normal operation) 17 W heater on |
| Environmental | |
|---|---|
| Housing material | 316 L stainless steel, corrosion-free for harsh environments |
| Humidity | 0% to 100%, no condensation |
| Operating Temperature Range | Continuous: -40°C to 60°C / -40°F to 140°F (sheltered, air temp) |
| Imaging & Optical | |
|---|---|
| Effective Pixels | 3840 × 2160, 8 MP (4K) |
| Electronic Shutter Speed | NA |
| Focal Length | 6 mm to >22 mm (0.24 in to 0.87 in) |
| Horizontal Field of View [HFOV] | 53°(W) to 26°(N) |
| Image Sensor | 1/1.8" CMOS |
| Image Stabilization | NA |
| Optical Zoom | Motorized, 4x |
| Shutter WDR | 120 dB |
| Mechanical | |
|---|---|
| Mounting | Ceiling, curved wall, and wall/pole mount options |
| Sunshield | 316L C5 Marine grade, powder coated RAL9016 |
