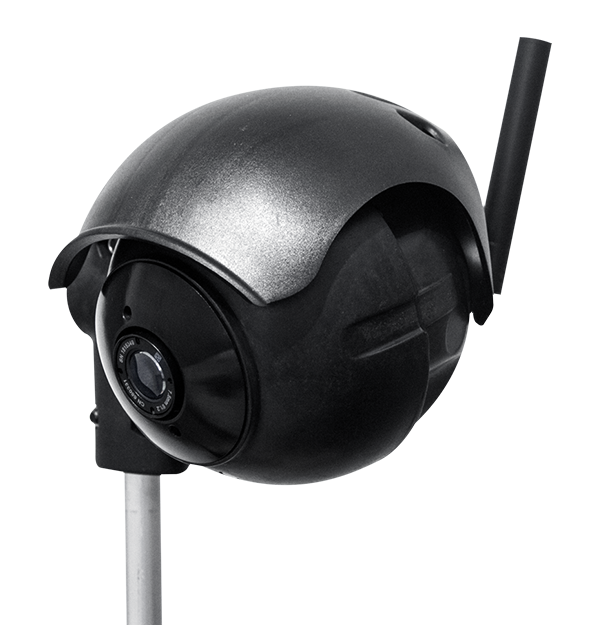

TrafiSense2
The World's Most Advanced Integrated Thermal Traffic Detector
TrafiSense2 is an integrated thermal sensor and detector for vehicle, vulnerable road user, and wrong way driver detection. TrafiSense2 does not need light to operate, and instead uses the thermal energy emitted from road users. This enables the sensor to detect vehicles and vulnerable road users at night, over long distances, and in harsh weather conditions. With available 640x480 resolution, the TrafiSense2 offers 24/7 traffic detection for a wide range of applications.
Especificações
| Visão geral do sistema | |
|---|---|
| Funcionalidade | Vehicle presence, Bicycle presence, Vehicle and bicycle counting, Pedestrian presence, Traffic data, wrong-way driver detection |
| Funcionalidades de Detecção | Vehicle and bicycle presence detection, vehicle and bicycle counting, pedestrian presence detection, pedestrian counting, traffic data collection, traffic flow monitoring, wrong way driver detection (requires extra license) |
| Número de Zonas de Detecção | 24 vehicle presence zones \ 8 bicycle presence regions \ 8 pedestrian zones \ 6 traffic data zones \ 6 wrong way driver zones |
| Comunicações | |
|---|---|
| Comandos de Configuração | Web interface |
| Compressão | H.264, MPEG-4, MJPEG |
| Monitoramento de tráfego (relatório de eventos e dados) | TMS FLUX. Public API for 3rd party integration. |
| SDLC | Up to 16 output channels via TI BPL2 EDGE B & SUI (PN 10-7018) or via TI BPL2 EDGE (PN 10-7013) and Port-1 Interface Module (PIM) |
| Eléctrico | |
|---|---|
| Alimentação de Entrada | 12-42VAC, 12-60VDC |
| Consumo de Energia | <10.5W (<15W peak at startup) |
| Distância de Detecção | TrafiSense2 690: 2-30 m / 6-100 ft TrafiSense2 645: 10-75 m / 32-245 ft TrafiSense2 632: 15-90 m / 100-300 ft |
| FCC | FCC part 15 Class A |
| Fechamentos de Contato | 2 direct, 4 via TI BPL2 EDGE interface (PN 10-7013), extra via 4I/O USB expansion board(s) (PN 10-467 |
| PoE | For communication of output state events, configuration & monitoring (streaming video) |
| Dados ambientais | |
|---|---|
| Choque e Vibração | NEMA TS2 |
| Diretivas da UE | EMC 2014/30/EU, RoHS 2011/65/EU |
| Faixa de Temperatura | NEMA TS2. From -34°C to +74°C (-29°F to 165°F) |
| Grau de Proteção | Housing = IP68, Connectors = IP67 |
| Materiais | All weatherproof (UV-resistant) |
| Geração de imagem e óptica | |
|---|---|
| Campo de Visão | TrafiSense2 690: Horizontal: 90° Vertical: 69° TrafiSense2 645: Horizontal: 45° Vertical: 35° TrafiSense2 632: Horizontal: 32° Vertical: 26° |
| Resolução | VGA (640×480) |
| Taxa de Quadros | 30 FPS |
| Tipo | Long wave Infrared (7 – 14 µm) |
| Mecânico | |
|---|---|
| Dimensões (incl. suporte de montagem) | Vertically mounted 45 cm x 16 cm x 12 cm (9.8 in x 6.3 in x 4.7 in) / Horizontally mounted 41 cm x 18 cm x 12 cm (16.2 in x 7.1 in x 4.7 in) |
| Material | Aluminum |
| Proteção Solar | Integrated |
