Discontinued

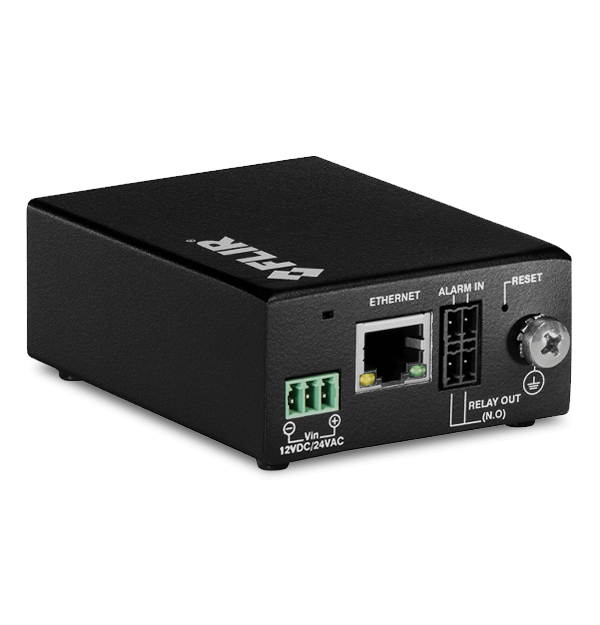

TRK-101

Analytics Encoder

The TRK-101 analyzes video signals and sends alarm notifications when people, vehicles and objects cross perimeter lines, enter pre-defined regions, or are left behind or removed from a scene. Users can define perimeters and customize what to detect. The TRK-101 has both analog and IP streaming video outputs that enable hybrid connectivity to both legacy and IP-based CCTV networks. The encoder also integrates with existing fixed analog cameras for retrofit of existing installations.

The self-contained video encoder that protects perimeters
The TRK-101 offers fully integrated, DSP-based real-time video analysis with both analog and IP streaming.
With up to five simultaneous intrusion detection rules, the TRK-101 improves the probability of detection and reduces false alarm rates.
The unit features storage on the Edge (SoE) with remote backup, and can be configured within five minutes using a standard web browser.

Especificações

Conformidade e certificações
Segurança UL, CE
Dados ambientais
Dados Ambientais RoHS
Interferência Eletromagnética (EMC) FCC 47 CFR Part 15, Subpart B, Class A; CE Class A
Temperatura Operacional 0° to 60°C (32° to 140°F)
Umidade de Operação 5% to 95% (non-condensing)
Geral
Consumo de Energia DC: 3.6W, AC: 6W
Dimensões (mm) 68.5 x 36 x 118mm (W x H x D)
Dimensões (polegadas) 2.7 x 1.42 x 4.61" (W x H x D)
Montagem Shelf/optional rack-mounting (single-unit or multiple-unit accessory)
Número de Canais de Análise Inteligente de Vídeo 1
Sistema Operacional Windows 7, 8 and 8.1, 10
Storage on the Edge 3,800Mb event recording
Taxa de Quadro H.264 (PAL/NTSC) D1 12/15 FPS VGA 18 FPS 2CIF 25/30 FPS CIF 25/30 FPS
Tensão 12VDC (+/-10%), 24VAC
Integração do sistema
Alarmes/Comandos TCP/IP, HTTP
Conector Físico 1x BNC 75Ω
Ethernet (IEEE 8023-8023u) 1 x RJ45 interface
IN – Entrada de Alarme 1x dry contact
Navegadores Microsoft Edge in IE mode (Microsoft will support IE mode in Edge at least until 2029)
OUT/Saída de Relé 1x relay output (rated load 0.3A@12VDC; 1A@30VDC; 0.25A@24VAC, 50/60Hz)
Padrão de TV Composite 1Vp-p – NTSC or PAL
Serviços e Protocolos TCP/IP, UDP/IP, HTTP, SMTP, DHCP, DNS, SNTP
Vídeo e gravação
Streaming de Vídeo IP H.264, MPEG-4 SP, MJPEG
Taxa de Bits CBR (128Kbps – 4Mbps), VBR
Vídeo Streaming RTP/RTSP
