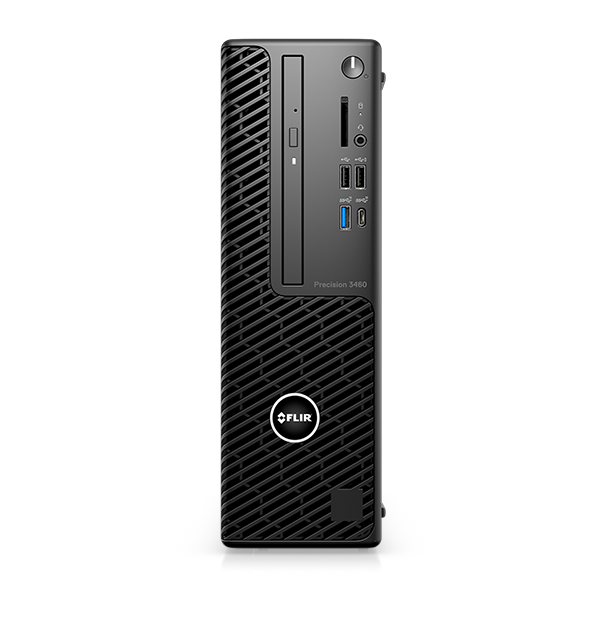

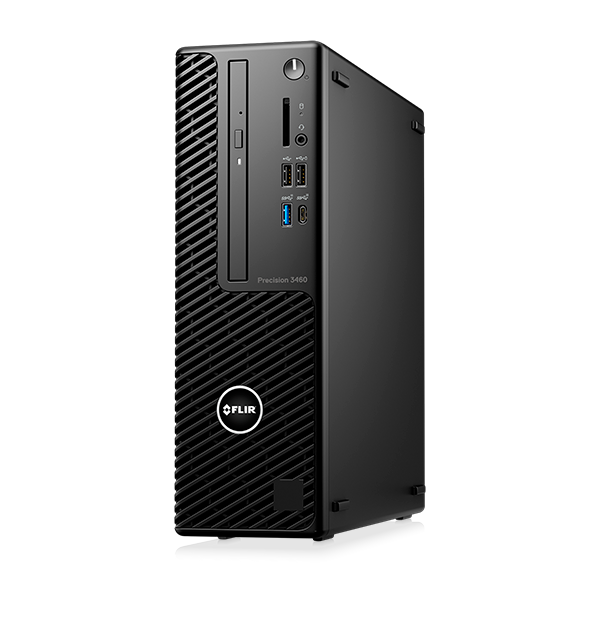

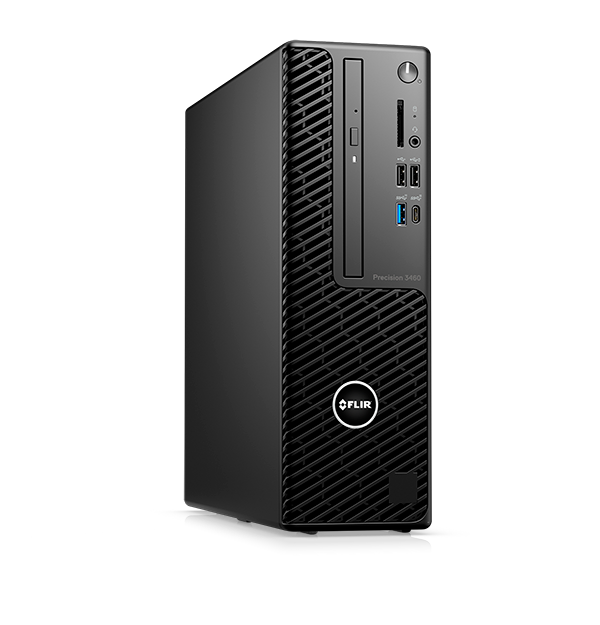

Estação de trabalho USS Client
Estação de trabalho cliente de alto desempenho otimizada para operações de monitoramento do United VMS
A USS Client da FLIR é uma estação de trabalho eficiente e de alto desempenho, concebida para atender às necessidades de segurança de centros de operação – sejam eles básicos, sejam eles altamente avançados – e é otimizada para produtos United VMS da FLIR. Ela também foi projetada para aceitar configurações de dois ou quatro monitores com gráficos em Full HD.
Especificações
| Conformidade e certificações | |
|---|---|
| Certificações | Nemko, CE, FCC, C-Tick, ICES, VCCI, CCC, KC |
| Geral | |
|---|---|
| Dimensões | H × W × D : 290 × 93 × 292 mm (11.42 × 3.65 × 11.5 in) |
| Fator de Forma | Small form factor |
| Fonte de Alimentação | 300 W up to 92% efficient (80 Plus Platinum) PSU (System Fan), 100~240 VAC 50/60 Hz (auto) |
| Garantia | 3-year ProSupport and Next Business Day On-site Service (upgrades available) |
| Memória | 16 GB (2 × 8 GB) DDR5 4800 MHz |
| Monitoramento | USS Client Workstation, Dual Monitor: Up to 400 fps 1080p USS Client Workstation, Quad Monitor: Up to 500 fps 1080p USS Client Workstation, Quad Monitor - High Performance: Up to 600 fps 1080p |
| Periféricos | QuietKey USB keyboard and optical scroll USB mouse |
| Peso | 5.26 kg (11.57 lb) |
| Processador | USS Client Workstation, Dual Monitor: Enterprise Quad-core Intel® Core i3-10105 USS Client Workstation, Quad Monitor: Intel® Core i5-12500 processor 3.0 GHz to 4.6 GHz USS Client Workstation, Quad Monitor - High Performance: Intel® Core i7-12700 processor, 12 Core (8P+4E), 2.1 GHz to 4.9 GHz, 65 W |
| Sistema Operacional | Microsoft® Windows 10 Professional (x64) |
| Unidade Óptica | 8x DVD±RW 9.5 mm Slimline optical disk drive |
| Integração do sistema | |
|---|---|
| Comunicação | Integrated Gigabit Ethernet controller |
| Controlador de Áudio | Via HDMI or 3.5 mm audio jack 1 x Mic-in / 1 x Headphone-out |

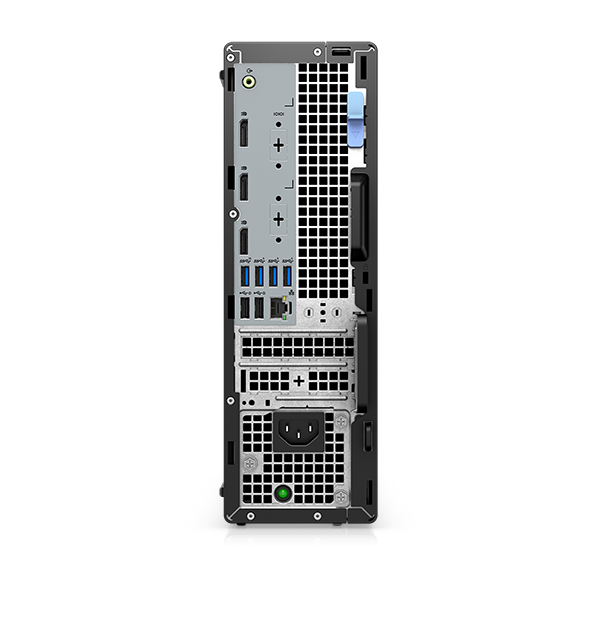

| Portas de E/S | RJ45, USB 2.0 port, USB 2.0 port PowerShare, USB 3.2 Gen 2 port, USB 3.2 Gen 2×2 capable Type-C® port, Universal audio port, Serial/PS2 port SD 4.0 card slot (optional) |
| Portas do Display | USS Client Workstation, Dual Monitor: 2 display ports USS Client Workstation, Quad Monitor, USS Client Workstation, Quad Monitor - High Performance: 2x display ports, 3x mini display ports |
| Rede | Dual NIC, 2x 10/100/1000 Mbps RJ-45 |
| Slots de E/S | SD 4.0 card slot (optional), half-height Gen 4 PCIe x16 slot, half-height Gen 3 PCIe x4 slot ,M.2 2230 slot for Wi-Fi and Bluetooth® card, M.2 2280 slot for solid-state drive (2), M.2 2230/2280 for solid-state drive (3), SATA 3.0 slot for 3.5/2.5-inch hard drive |
| Vídeo e gravação | |
|---|---|
| Disco Rígido | M.2 256 GB PCIe NVMe Class 35 Solid State Drive |
