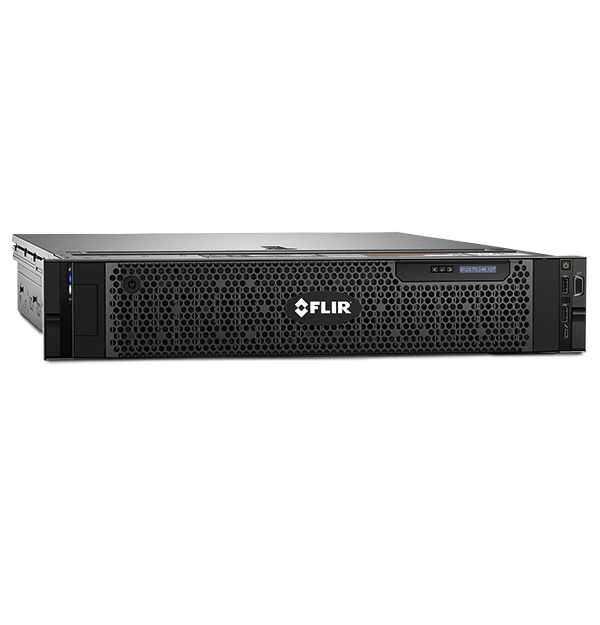

USS Enterprise 2U Server
High Performance Scalable Server Optimized for United VMS Server and Storage Solutions
The FLIR Universal Systems Solutions Enterprise is an ideal multi-purpose rack server, offering up to 240 TB of internal storage. Designed to address the requirements of IT environments, the server is pre-loaded with system management capabilities, excellent system scalability, redundancy and value in a compact chassis.
Especificações
| Conformidade e certificações | |
|---|---|
| Certificações | Nemko, CE, FCC, C-Tick, ICES, VCCI, CCC, KC, BIS, UL, NUM |
| Geral | |
|---|---|
| Chipset | Intel® C741 |
| Controlador RAID | PERC H755 Adapter, Low Profile |
| Dimensões | 86.8 × 434.0 × 678.8 mm (3.41 × 17.08 × 26.72 in) |
| Fator de Forma | 2 U rack |
| Fonte de Alimentação | Dual, Hot-plug, Power Supply Redundant (1+1), 800 W, Mixed Mode, NAF |
| Garantia | 5-year ProSupport and Next Business Day On-site Service (upgrades available) |
| Gerenciamento do Sistema | iDRAC9, Express 16G (enterprise license upgrade option) |
| Memória | 16 GB RDIMM RAM |
| Peso | Max: 33.1 kg (72.91 lb) |
| Processador | Enterprise Eight-core Intel® Xeon® Silver processor |
| Sistema Operacional | Microsoft Windows Server 2016 e Server 2019 |
| Suporte para Rack | ReadyRails™ II sliding rails |
| Unidade do Sistema Operacional | null |
| Integração do sistema | |
|---|---|
| Comunicação | Broadcom 57454 Quad Port 10GbE BASE-T Adapter, PCIe Low Profile |
| Porta USB | Front Ports 1 × USB 2.0 Rear Ports 1 × USB 2.0, 1 × USB 3.0 Internal Ports 1 × USB 3.0 |
| Slots de E/S | Intel® C741 |
| Soquetes de Processador | 2 |
| Vídeo e gravação | |
|---|---|
| Armazenamento do Disco Rígido | Enterprise class, Hot-swap HDDS
Max Internal Storage: 288TB |
| Compartimento para Disco Rígido | 12 hard drive chassis |
