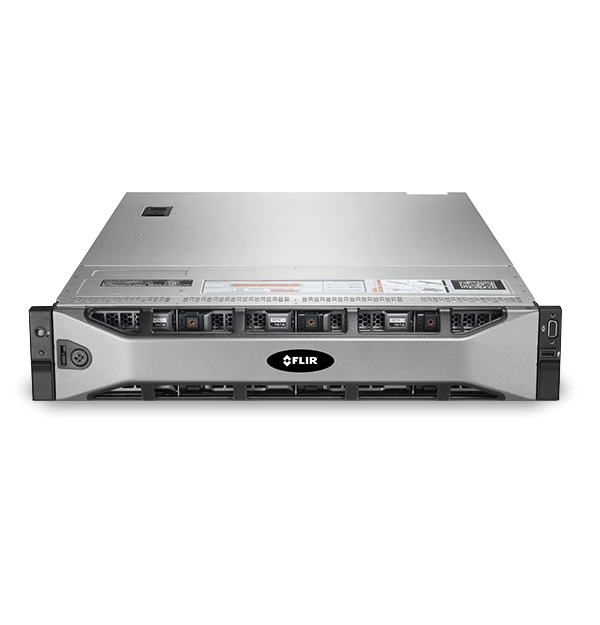

USS Enterprise-Class
Enterprise-Class Server
The FLIR Universal Systems Solutions Enterprise is an ideal multi-purpose rack server with up to 96TB of storage, redundancy, and value in a compact chassis that addresses the requirements of IT environments. The unit is loaded with system management capabilities, best-in-class processing, and the ability expand storage in the future.
Especificações
| Conformidade e certificações | |
|---|---|
| Certificações | Nemko, CE, FCC, C-Tick, ICES, VCCI, CCC |
| Geral | |
|---|---|
| Chipset | Intel C610 |
| Controlador RAID | Hardware RAID controller with Flash Backed Cache |
| Dimensões | 87.3 x 440 x 684 (mm) |
| Fator de Forma | 2U rack |
| Fonte de Alimentação | Dual, Hot-plug, Redundant Power Supply, 495W, 100~240VAC 50/60Hz (auto) |
| Garantia | 3-year ProSupport and Next Business Day On-site Service (upgrades available) |
| Gerenciamento do Sistema | iDRAC8 Express (Enterprise License Upgrade Option) |
| Memória | 16 GB RDIMM RAM (2X8GB) |
| Peso | Max: 36.5 Kg (80.47 lb) |
| Processador | Enterprise Six-core Intel® Xeon® processor E5-2600 product family |
| Sistema Operacional | Microsoft Windows Server 2012 R2 Embedded) |
| Suporte para Rack | ReadyRails™ II sliding rails |
| Integração do sistema | |
|---|---|
| Comunicação | Embedded Quad Port 1Gb NIC |
| Periféricos USB | 2 - USB 3.0 compliant |
| Slots de E/S | 6 PCIe slots |
| Soquetes de Processador | 2 |
| Vídeo e gravação | |
|---|---|
| Armazenamento do Disco Rígido | Enterprise class, Hot-swap HDDS Max Internal Storage: 96TB |
| Compartimento para Disco Rígido | 16+2 hard drive chassis |
