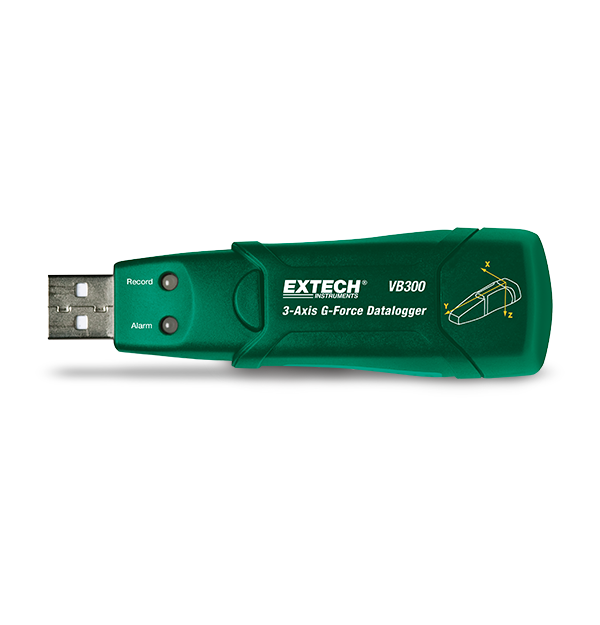

Extech VB300
3-Axis G-Force USB Datalogger
The VB300 is a G-Force datalogger which records and times 3-axis shock and vibration (acceleration) readings over its ±18g measurement range. This device will record 3-axis g-force and related peaks to provide a history of shock and vibration conditions. Complete with Magnetized/Bolt-on Mounting Base, 3.6V Lithium battery and Windows compatible analysis software.
Especificações
| Especificações gerais | |
|---|---|
| Aceleração | ±18g |
| Formato de Dados | Time stamped peak acceleration, average and peak vector sum |
| Intervalo de registro de dados | 500 ms to 24 hours (software) |
| Largura de banda de frequência | 0 to 60Hz |
| Memória | 4Mbit Flash; 112028 Motion Detection samples per axis, or 168042 Normal samples |
| Precisão básica da aceleração | ±0.5g |
| Resolução máx. da aceleração | 0.00625g |
| Taxa de Amostragem | 200Hz |
| Tipo de Sensor | MEMS semiconductor |
| Detalhes adicionais | |
|---|---|
| Certificações | CE |
| Dimensões | 3.7 × 1.1 × 0.8" (95 × 28 × 21mm) |
| Garantia | 2 years |
| Peso | 1oz (20g) |
| Potência | 1 × 3.6V Lithium battery |
Resources & Support
Observação: Você deve estar conectado para baixar software ou firmware. Faça login ou crie uma conta.
Software Download
Extech VB300 Software
User Manual
Extech VB300 User Manual
Certification
Extech VB300 Declaration of Conformity
Datasheet
Extech VB300 Datasheet
