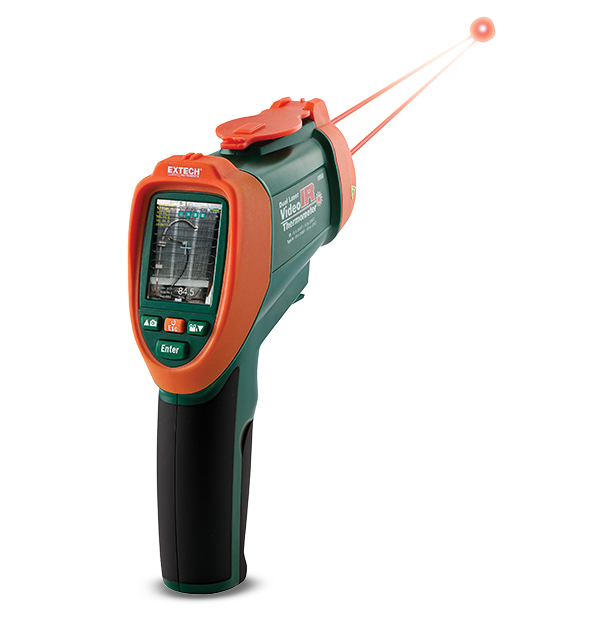

Extech VIR50
Dual Laser IR Video Thermometer
The Extech VIR50 is a 2200°C (3992°F) Dual Laser Video IR Thermometer which features a 5.6 cm (2.2 in) color TFT LCD display and built-in VGA (640 x 480) camera. It includes a MicroSD card for capturing images (JPEG) and video (3GP) for viewing on your PC. Dual lasers indicate the ideal measuring distance (approximately 127 cm) where the two laser points converge to a 2.5 cm (1 in) target spot. Comes with microSD card, general-purpose Type-K bead wire probe, USB cable, rechargeable 3.7 V battery, carrying case, and user manual.
Especificações
| Especificações gerais | |
|---|---|
| Câmera | 640 x 480 pixels |
| Emissividade | 0.10 to 1.00, adjustable |
| Identificação de Alvos | dual laser |
| Precisão básica da temperatura (IV) | -58 to 3992 °F (-50 to 2200 °C) |
| Relação de distância até o alvo | 50:1 |
| Repetibilidade | ±0.5% or 1.8 °F/1 °C |
| Resolução máx. da temperatura (IV) | ±(1% of reading + 4 °F/2 °C) (31 to 212 °F) |
| Temperatura (ar) | 32 to 122 °F (0 to 50 °C) |
| Temperatura (contato) | -58 to 2498 °F (-50 to 1370 °C) |
| Temperatura (RTD) | 0.1 °F/ °C |
| Umidade Relativa | 0 to 100% |
| Detalhes adicionais | |
|---|---|
| Certificações | CE |
| Dimensões | 7.4 × 6.0 × 2.2" (189 × 152 × 57mm) |
| Display | 2.2" TFT LCD, 320 x 240 pixels |
| Garantia | 3 years |
| Peso | 17.4oz (494g) |
| Potência | 1 × 3.7V rechargeable battery |
Resources & Support
User Manual
Extech VIR50 User Manual
Certification
Extech VIR50 Declaration of Conformity
Datasheet
Extech VIR50 Datasheet
