Note: For additional support resources, please visit Support.FLIR.com.
The Flir VS80 is a versatile, professional videoscope that you can rely on when inspecting locations that are difficult or unsafe to access. The wide range of unique compatible probes* with waterproof (IP67) camera tips give you flexibility for virtually any type of inspection. Options include: a 160 × 120 thermal camera, 2-way and 4-way articulating visual camera, 30 m plumbing spool with 512 Hz sonde probe locator, HD camera, and dual HD camera probe.
With one or more of the VS80 videoscope probes, you can perform a wide range of inspections, including industrial equipment maintenance, HVAC/R, building, and automotive applications. Easily maneuver the narrow camera probes into small openings and tight spaces, and view sharp, vivid images and videos from the large, 7-inch touchscreen display. Using the Flir Meterlink® Mobile app from a mobile device, you can view live images and video from the VS80, download saved files, and share them easily with customers or colleagues.
Choose a complete kit or purchase the VS80 display and camera probes separately.
Inspect hard-to-reach components without disassembling equipment
Choose from 7 small-diameter probe options to inspect places your old videoscope cannot
Capture still images and video, record voice annotations, add text notes to saved images, and share findings with team members
Aplicativo Flir Meterlink
O aplicativo Flir Meterlink permite monitorar várias condições ambientais e elétricas simultaneamente com a capacidade de se conectar a até sete medidores compatíveis com a FLIR de uma só vez. Com o Meterlink, você pode capturar imagens com segurança e monitorar áreas perigosas remotamente e em tempo real. Quer você esteja se conectando a um ou vários produtos Flir Test & Measurement, você poderá acompanhar as principais leituras em sua instalação e compartilhá-las facilmente com sua equipe.
Specifications
| Highlighted | |
|---|---|

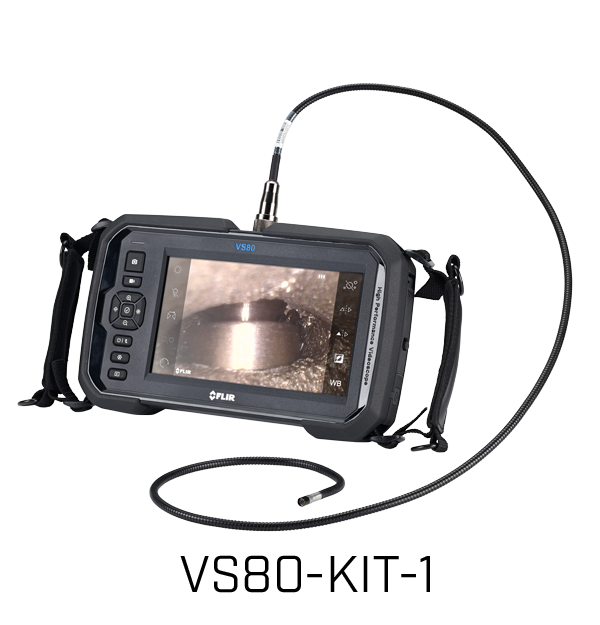

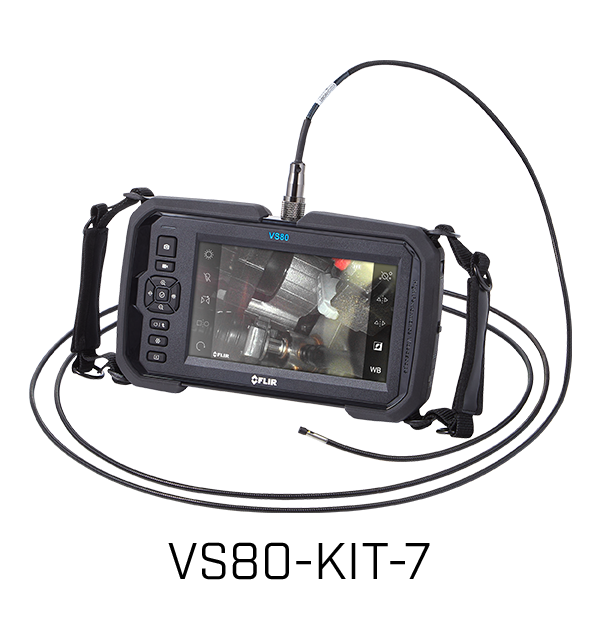

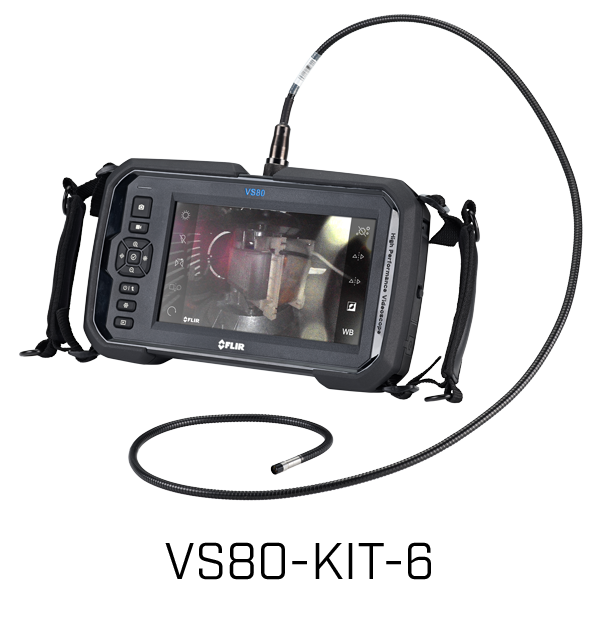

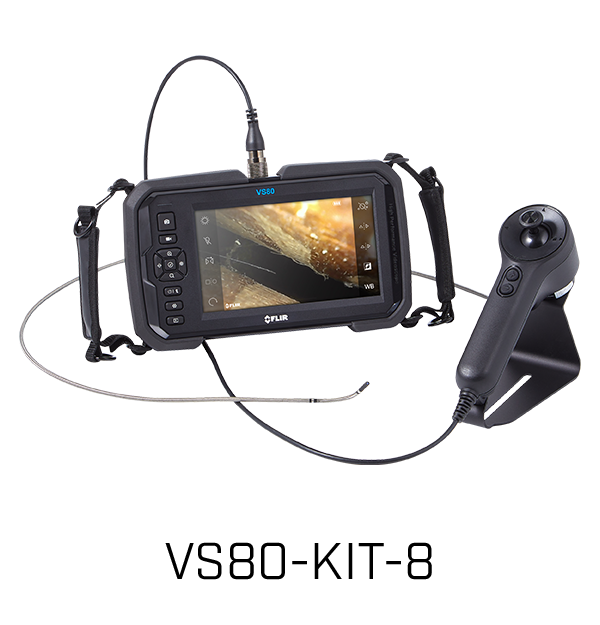

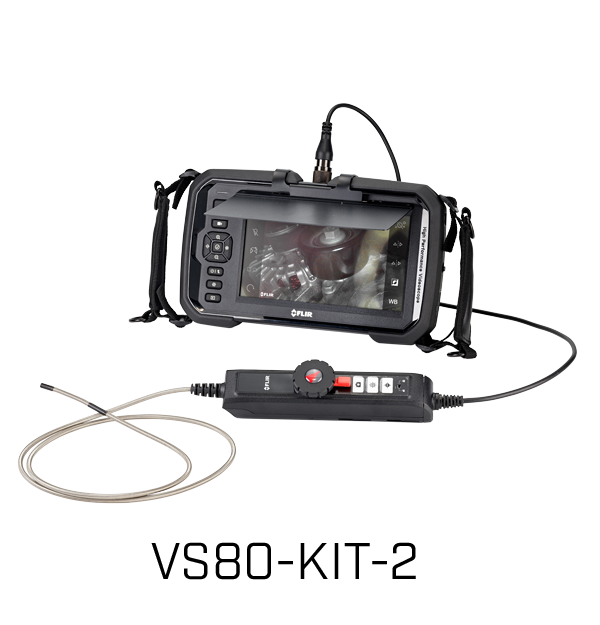

| Diameter | VS80-KIT-1, VS80-KIT-6: 5.5 mm VS80-KIT-2: 4.5 VS80-KIT-3, VS80-KIT-7: 4.9 mm VS80-KIT-5: 10 mm VS80-KIT-8: 3.9 mm VS80-IR21: 19 mm |

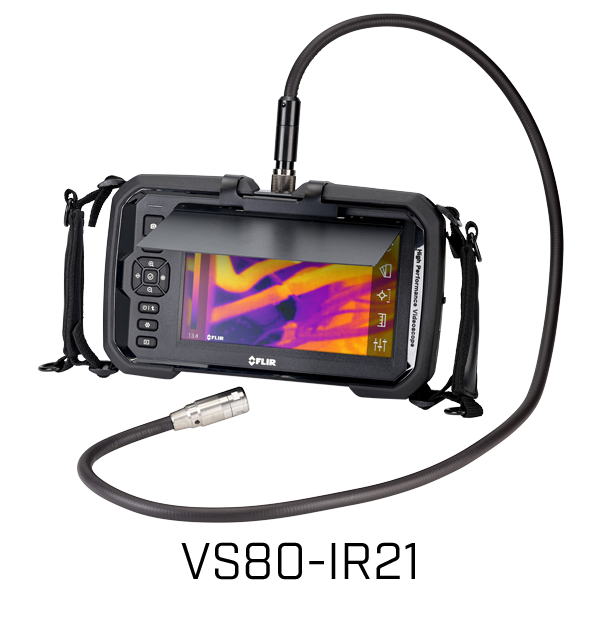

| Display resolution | VS80-IR21: Camera probe: 160 × 120 IR
Screen resolution 1024 × 600 VS80-KIT-1, VS80-KIT-2, VS80-KIT-4, VS80-KIT-5: Camera probe: 640 × 480 Screen resolution 1024 × 600 VS80-KIT-3, VS80-KIT-6, VS80-KIT-7, VS80-KIT-8: Camera probe: 1280 × 720 Screen resolution 1024 × 600 |
| Imaging & Optical | |
|---|---|
| Color palettes | Iron, rainbow, grayscale, below alarm, above alarm |
| Depth of Field | 10 mm to infinity |
| Diameter | VS80-KIT-1, VS80-KIT-6: 5.5 mm VS80-KIT-2: 4.5 VS80-KIT-3, VS80-KIT-7: 4.9 mm VS80-KIT-5: 10 mm VS80-KIT-8: 3.9 mm VS80-IR21: 19 mm |
| Display resolution | VS80-IR21: Camera probe: 160 × 120 IR
Screen resolution 1024 × 600 VS80-KIT-1, VS80-KIT-2, VS80-KIT-4, VS80-KIT-5: Camera probe: 640 × 480 Screen resolution 1024 × 600 VS80-KIT-3, VS80-KIT-6, VS80-KIT-7, VS80-KIT-8: Camera probe: 1280 × 720 Screen resolution 1024 × 600 |
| Field of View | VS80-IR21: 71° VS80-KIT-1, VS80-KIT-2, VS80-KIT-3, VS80-KIT-6, VS80-KIT-7, VS80-KIT-8: 90° VS80-KIT-4, VS80-KIT-5: 87.1° |
| Frame Rate | 8.7 Hz |
| Measurement & Analysis | |
|---|---|
| Object Temperature Range | -10°C to 400°C (14°F to 752°F) |
| Spot Meter | Centre spot, hot spot, cold spot, no measurement |
| Communication & Data Storage | |
|---|---|
| Video_Image Transfer | SD Card, USB, Wireless (Wi-Fi) |
| Power | |
|---|---|
| Battery | VS80: Li-Ion 3.6 V (internal) |
| Battery Life | 8 hrs |
| General | |
|---|---|
| Probe Length | VS80-IR21, VS80-KIT-1, VS80-KIT-2, VS80-KIT-3, VS80-KIT-6: 1 m VS80-KIT-4, VS80-KIT-8: 2 m VS80-KIT-7: 3 m VS80-KIT-5: 25 m |
| Environmental & Certifications | |
|---|---|
| Certifications | IC, CE, FCC, UKCA, RCM |
| Warranty | 3 years |
Accessories
- VS80 4-way Articulating Camera Probe (VS80A4HD-39-2RM)
- VS80 Dual HD Camera Probe (VS80C2HD-49-3RM)
- VS80 2-Way Articulating Camera Probe (VS80A2-45-1RM)
- VS80 4-way Articulating Camera Probe (VS80A4-60-2RM)
- VS80 Camera Probe (VS80C55-1RM)
- VS80 IR Thermal Camera Probe (VS80CIR-21)
- VS80 HD Camera Probe (VS80CHD-55-1RM)
- VS80 Plumbing Spool and Camera Probe (VS80C10-25RM)
