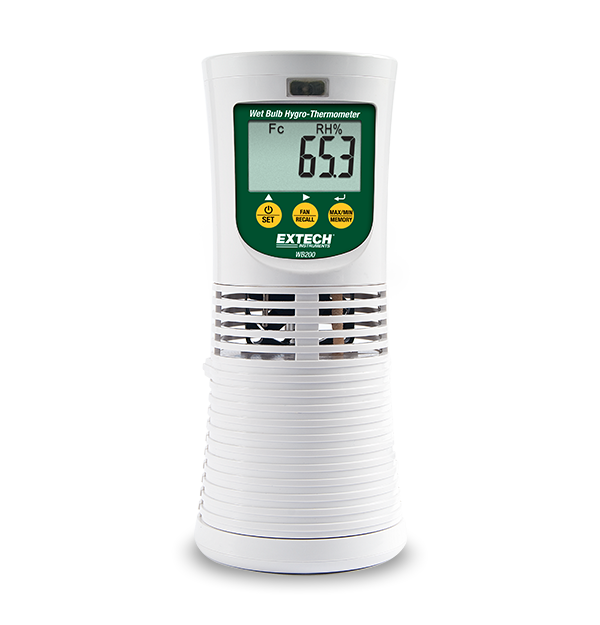

Extech WB200
Wet Bulb Hygro-Thermometer Datalogger
Ideal for monitoring humidity and temperature levels in a wide range of locations, the Extech WB200 combines traditional dry and wet bulb operation with electronic circuitry to provide accurate readings and trouble-free operation, especially in dusty environments. A built-in fan provides fast response time. It has audible and visual alerts for temperature and humidity levels higher or lower than the user programmed high/low set points. The datalogger featuring user programmable sampling rates (15 to 60 minutes) stores 100 records that can easily be recalled on the display. Measures wet bulb, dew point, temperature (5°C to 50°C / 41°F to 122°F), and relative humidity (0.0% RH to 99.9% RH). Comes with four AAA batteries, 100 V - 240 V universal AC adapter, and user manual.
Especificações
| Especificações gerais | |
|---|---|
| Bulbo úmido | 41 to 122°F (5° to 50°C) |
| Memória | Up to 100 reading sets |
| Ponto de Condensação | 41 to 122°F (5° to 50°C) |
| Precisão básica da temperatura (ar) | ±1°F/0.6°C |
| Precisão básica da umidade relativa | ±3% |
| Precisão básica do bulbo úmido | ±1°F/0.6°C |
| Precisão básica do ponto de condensação | ±1°F/0.6°C |
| Resolução máx. da temperatura (ar) | 0.1° |
| Resolução máx. do bulbo úmido | 0.1° |
| Resolução máx. do ponto de condensação | 0.1° |
| Resolução máxima da umidade relativa | 0.1% |
| Taxa de Amostragem | 15 minutes to 60 minutes in 5 minute increments |
| Temperatura (ar) | 41 to 122°F (5° to 50°C) |
| Tempo de Resposta | 120 second update rate |
| Umidade Relativa | 0.0 to 99.9% |
| Detalhes adicionais | |
|---|---|
| Certificações | CE |
| Dimensões | 2.8 × 3.1 × 7.0'' (70.8 × 77.6 × 177mm) |
| Garantia | 2 years |
| Peso | 8.0oz (250g) |
| Potência | 4 × AAA (1.5V) batteries or 5V universal power adaptor (included) |
Resources & Support
Certification
Extech WB200 Declaration of Conformity
User Manual
Extech WB200 User Manual
Datasheet
Extech WB200 Datasheet
