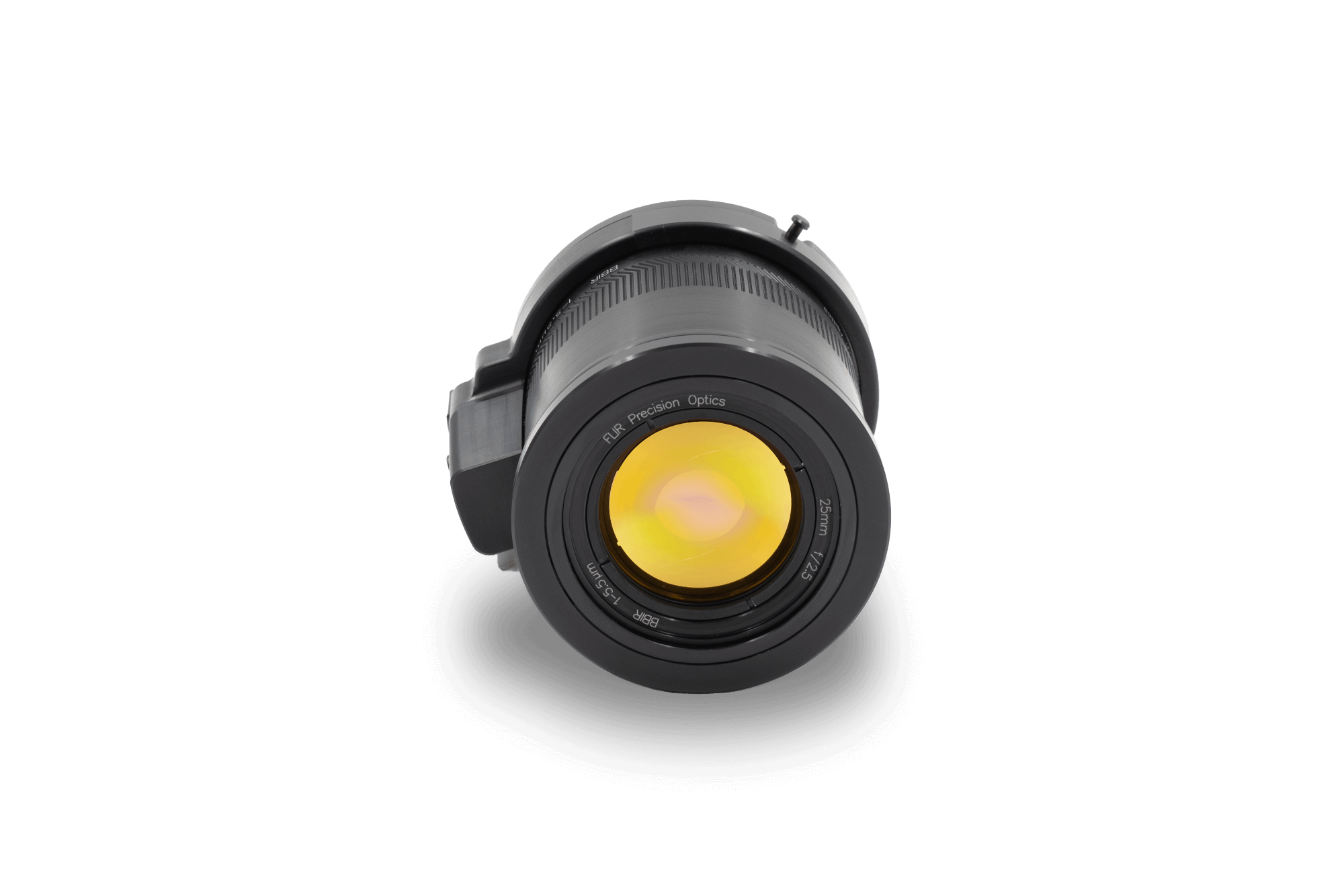

25 mm,1.0-5.5 μm,f/2.5 电动卡栓光学精密宽波段镜头 (4242126)

25 mm,1.0-5.5 µm,f/2.5 电动卡栓光学精密宽波段镜头,适用于 FLIR 研发科研用热像仪,包括 A67xx、A85xx、X69xx MWIR 和 X85xx MWIR。

规格

成像与光学
光圈数 2.5
光谱带 1 - 5.5 微米
失真 < 3%
焦距 25 mm
直径 90.37mm,不包括电机基座
调焦范围 200mm 至无穷远
超焦距 11/16(4.2um/3um 时)
长度 93.21mm
用户界面
接口 5 片式电动卡栓光学精密 **与非电动卡栓不兼容
环境与认证
工作温度范围 -20 至 +50°C
常规
平均传输 82.91%
重量 1.01 kg

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
