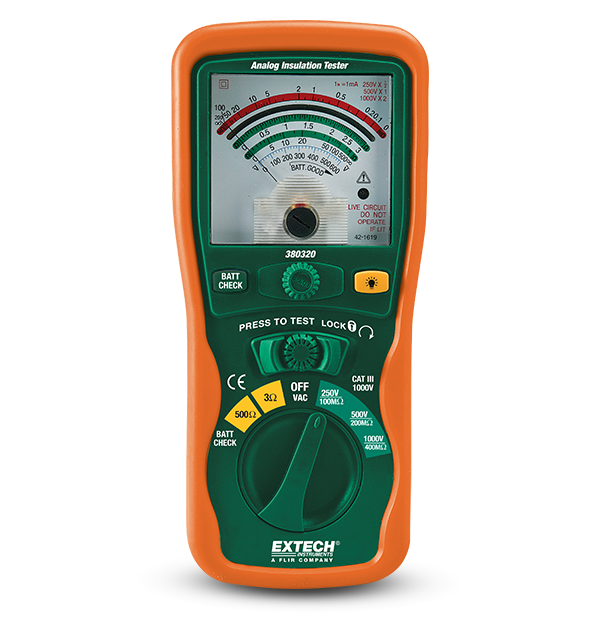

Extech 380320
Analog Insulation Tester
The Extech 380320 is an Analog Insulation Tester with a large, easy to read analog display. It features a live circuit warning which displays the actual AC voltage measurement. It also includes an automatic discharge circuit, lock power on feature for extended test times, and insulation resistance up to 400 MΩ. Complete with heavy duty test leads, alligator clip test lead, 6 AA batteries, hanging strap, and hard carrying case.
规格
| 一般参数 | |
|---|---|
| 交流电压 | 0 to 600V |
| 交流电压基本精度 | ±5% of scale |
| 导通性 | 3Ω |
| 导通性基本准确度 | ±3% of scale |
| 电阻 | 1 to 500Ω |
| 绝缘测试电压 | 250V, 500V, 1000V |
| 绝缘电阻 | 0 to 100MΩ, 0 to 200MΩ, 0 to 400MΩ |
| 绝缘电阻基本精度 | ±5% of scale |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CAT III-1000V |
| 尺寸 | 7.9 × 3.6 × 2" (200 × 92 × 50mm) |
| 显示屏 | Analog |
| 电源 | 6 × AA (1.5V) batteries |
| 认证 | CE |
| 重量 | 1.2lb (546g) |
