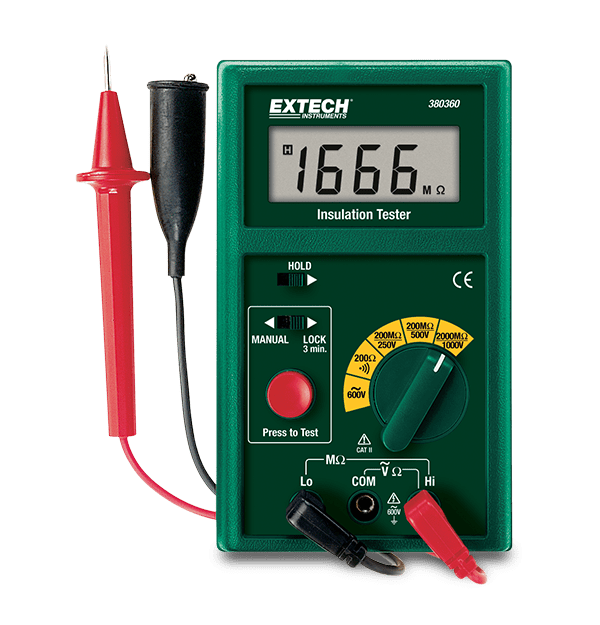

Extech 380360
Digital Megohmmeter
The Extech 380360 is a 1000 V Megohmmeter with an automatic 3 minute test. It has three test voltages of 250 V, 500 V and 1000 V, plus insulation resistance up to 2000 MΩ. Automatic discharge when the safety "Press to Test" button is released. Complete with 6 AA batteries, heavy duty 0.8 m (2.5 ft) test leads, alligator clip, large probe, and case with neck strap.
规格
| 一般参数 | |
|---|---|
| 交流电压 | 600V |
| 交流电压基本精度 | 0.8% of reading + 3 digits |
| 低电阻 | 200Ω |
| 低电阻基本精度 | 1% of reading |
| 导通性 | <100Ω |
| 电阻 | 20/200Ω |
| 绝缘测试电压 | 250V, 500V, 1000V |
| 绝缘电阻 | 200M, 2000MΩ |
| 绝缘电阻基本精度 | <1000MΩ (3% of reading + 5 digits), >1000MΩ (5% of reading + 5 digits) |
| 输出短路电流 | 1.5 mA 0.3-0.5 mA |
| 过载保护 | 2200V (< 1 min) |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CAT II-600V |
| 尺寸 | 3.8 × 6.3 × 2.3" (97 × 160 × 58mm) |
| 显示屏 | Segment LCD |
| 电源 | 6 × AA (1.5V) batteries |
| 认证 | CE |
| 重量 | 13oz (369g) |
