Extech 380976-K
单相/三相 1000A 交流功率钳形表套装

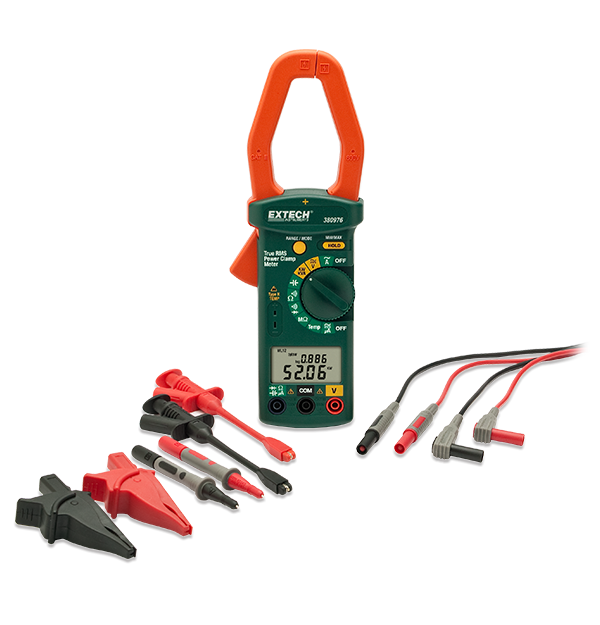

380976-K 是一款单相/三相 1,000A 交流功率钳形表套装。可测量单相/三相有效功率 (kW)、视在功率 (kVA)、无功功率 (kVAR)、马力 (HP) 数、功率因数和相位角，带提前/滞后指示灯。自动检测交流/直流电压测量值，同时显示频率。此外，随附的测试引线套装，包括两根 CAT IV 182cm 测试引线、两个模块化测试探针手柄、两个柱塞驱动的钳夹和两个超大号鳄鱼夹。配有测试引线套装、K 型探针、便携箱和 9V 电池。
规格
| 一般参数 | |
|---|---|
| AC Current | 1000A |
| AC Current Basic Accuracy | ±2% |
| AC Current Max Resolution | 10mA |
| AC Microcurrent | 1000µA |
| AC Microcurrent Basic Accuracy | ±1% |
| AC Microcurrent Max Resolution | 10nA |
| AC Voltage | 600V |
| AC Voltage Basic Accuracy | ±1% |
| AC Voltage Max Resolution | 0.1mV |
| Apparent Power | 600kVA |
| Apparent Power Basic Accuracy | ±2% |
| Apparent Power Max Resolution | 100VA |
| Capacitance | 7000µF |
| Capacitance Max Resolution | 1nF |
| DC Microcurrent | 1000µA |
| DC Microcurrent Basic Accuracy | ±1% |
| DC Microcurrent Max Resolution | 10nA |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±1% |
| DC Voltage Max Resolution | 0.1mV |
| Frequency | 40Hz 至 1kHz |
| Frequency Basic Accuracy | ±0.5% |
| Frequency Max Resolution | 0.1Hz |
| Horsepower | 800HP |
| Horsepower Basic Accuracy | ±5% |
| Horsepower Max Resolution | 0.01HP |
| Low Resistance | 1000kΩ |
| Low Resistance Basic Accuracy | ±1% |
| Low Resistance Max Resolution | 0.1Ω |
| Phase | -60 至 +60° |
| Phase Basic Accuracy | ±6° |
| Phase Max Resolution | 0.1° |
| Reactive Power | 600kVAR |
| Reactive Power Basic Accuracy | ±5% |
| Reactive Power Max Resolution | 10VAR |
| Resistance | 100MΩ |
| Resistance Max Resolution | 1kΩ |
| Temperature [Type K] Max Resolution | -50 至 900°C |
| Temperature [Type N] | ±1% |
| Temperature [Type N] Basic Accuracy | 0.1°C |
| True Power | 600kW / 10W |
| True Power Basic Accuracy | ±5% |
| True Power Max Resolution | 10W |
| 其他详情 | |
|---|---|
| Certifications | 380976-K-NIST_S：CE、UL、NIST 380976-K_S：CE、UL |
| Dimensions | 228 × 76 × 39mm |
| Power | 1 节 9V 电池 |
| Safety Category | CATIII - 600V |
| Warranty | 2 年 |
| Weight | 465g |
