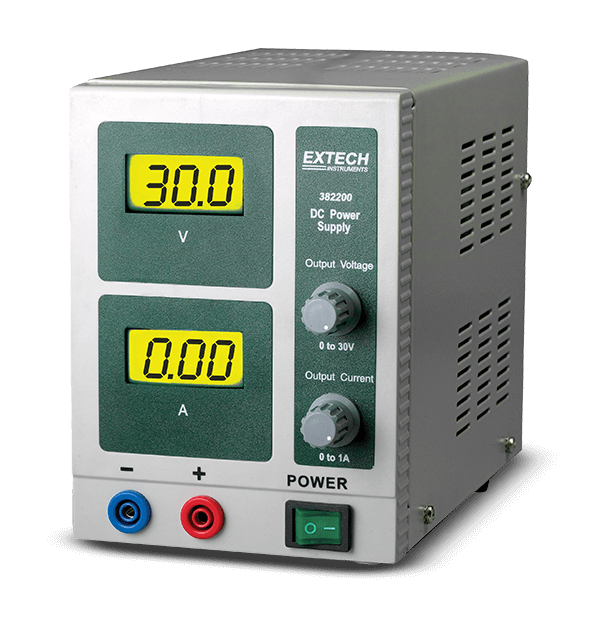

Extech 382200

30V/1A 单通道输出直流电源

恒压/恒流数字直流电源，带双 LCD

规格

一般参数
Line Current Regulation <0.2% + 3mA
Line Voltage Regulation <0.01% + 3mV
Load Current Regulation <0.2% + 3mA
Load Voltage Regulation <0.01% + 2mV
Output Current 0 - 1.00A（直流）
Output Current Basic Accuracy 读数的 ±2%
Output Voltage 30.0V（直流）
Output Voltage Basic Accuracy 读数的 ±1.5%
Ripple and Noise <0.5mV/<3mA
其他详情
Dimensions 240 × 108 × 154mm
Power 115V/230V；50/60Hz
Warranty 2 年
Weight 2 kg

Resources & Support

User Manual

Extech 382200 382202 User Manual

下载

Datasheet

Extech 382200-382202 Datasheet

下载

Certification

Extech 382200 Declaration of Conformity

下载
