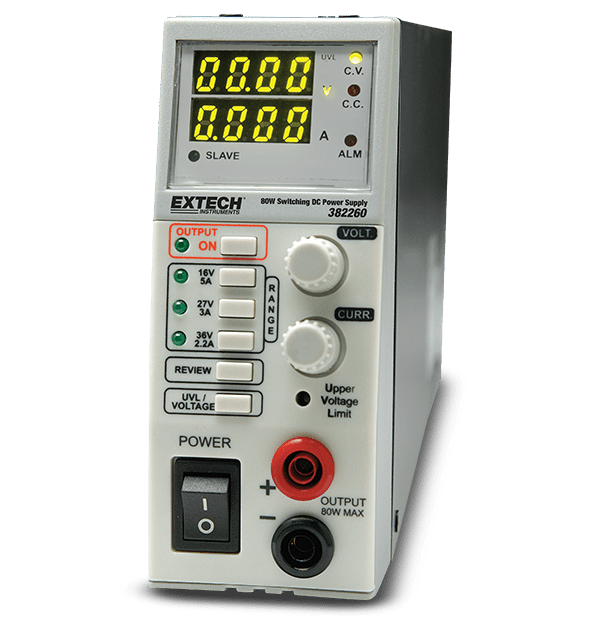

Extech 382260
80W Switching Mode DC Power Supply
Extech’s 382260 is an 80 W Switching Mode DC Power Supply. Its has three selectable output ranges that perform like three power supplies in one: 0 V to 16 V (0 A to 5 A), 0 V to 27 V (0 A to 3 A), and 0 V to 36 V (0 A to 2.2 A). This compact and lightweight unit provides easy portability and is ideal for tight workbenches with limited space. The 382260 features 4-Digit LED displays, front and rear output terminals, and remote sensing for accurate applied voltage at load point. Complete with AC Power cord.
规格
| 一般参数 | |
|---|---|
| 波纹和噪声 | <30mVpp |
| 线路电压调节 | <4mV |
| 负载电压调节 | <20mV |
| 输出电压 | 0.10 to 16.40V, 0.10 to 27.60V, 0.10 to 36.80V |
| 输出电压基本精度 | ±1% |
| 输出电流 | 0.100 to 5.100A, 0.100 to 3.100A, 0.100 to 2.300A |
| 输出电流基本精度 | ±1% |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 13 × 5 × 2" (330 × 127 × 53.5mm) |
| 电源 | 90-264VAC; 47-63Hz |
| 认证 | CE |
| 重量 | 4.2lbs (1.9kg) |
资源和支持
User Manual
Extech 382260 User Manual GB
Datasheet
Extech 382260 Datasheet
