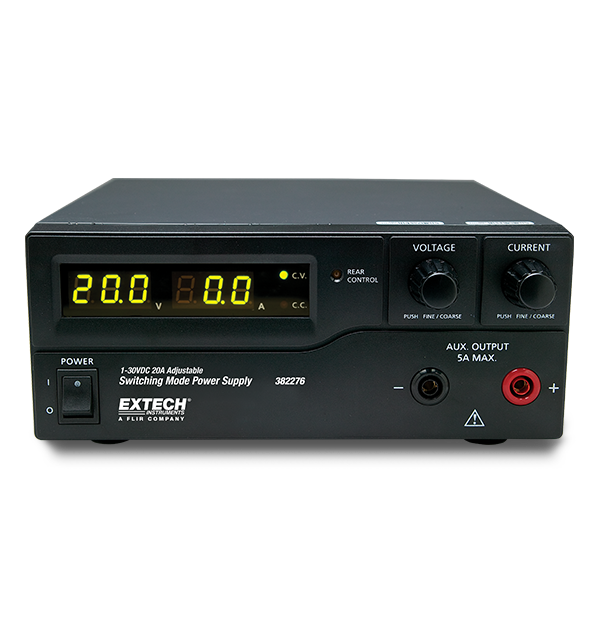

Extech 382276
600W 交换式直流电源
382276 是开关模式直流电源，具有 0 至 30V/ 20A 范围内的可调输出，有两个用户定义的预设和一个 13.8V/20A 的出厂预设。该电源采用双 LED 显示屏、高 RFI 抗扰度、出色的 EMI 和恒温控制风扇。其他功能包括过电压、过热和短路保护。工作参数为 220V、50/60Hz，配有交流电源线。
规格
| 一般参数 | |
|---|---|
| Line Current Regulation | 最小 50mA |
| Line Voltage Regulation | 20mV |
| Load Current Regulation | 最小 100mA |
| Load Voltage Regulation | 50mV |
| Output Current | 1 至 20A |
| Output Current Basic Accuracy | ±（读数的 0.5% + 2 位数） |
| Output Current Max Resolution | 100mA |
| Output Voltage | 1 至 30V |
| Output Voltage Basic Accuracy | ±（读数的 0.5% + 2 位数） |
| Output Voltage Max Resolution | 100mV |
| Ripple and Noise | <5mVrms |
| 其他详情 | |
|---|---|
| Certifications | CE |
| Dimensions | 200 × 90 × 215 mm |
| Power | 230V，50Hz/60Hz |
| Warranty | 2 年 |
| Weight | 2.6kg |
