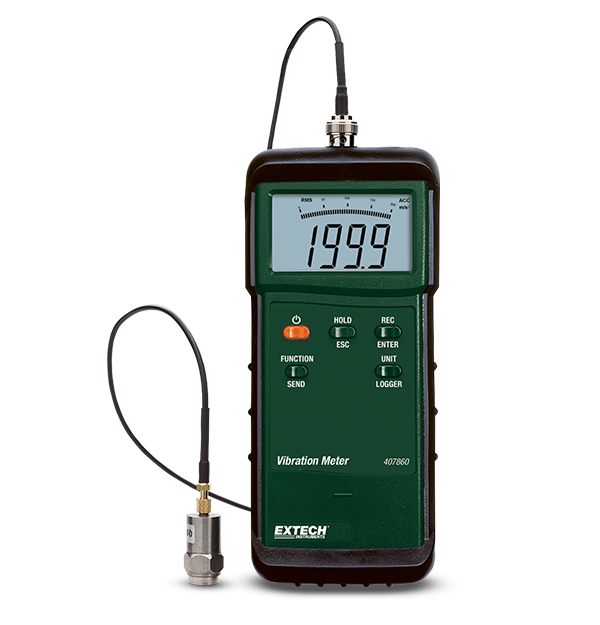

Extech 407860
耐用型测振仪
407860 耐用型测振仪的速度范围为 200 mm/s；加速度范围为 200 m/s²，位移范围为 2 mm。它具有 5% 的基本精度、带 1 米电缆的远程振动传感器（磁性或螺柱安装）、有效值、峰值测量模式和自动/手动存储，可调用多达 500 个读数。采集的读数可以下载到您的 PC 中，用可选的 Windows 兼容数据记录软件进行进一步分析。该测振仪配有远程传感器、磁性支架、9V 电池、带支架的皮套和便携箱。
规格
| 一般参数 | |
|---|---|
| Acceleration | 200m/s² |
| Acceleration Basic Accuracy | ±5% |
| Acceleration Max Resolution | 0.5 m/s² |
| Displacement | 1.999 mm |
| Displacement Basic Accuracy | ±5% |
| Displacement Max Resolution | 0.001mm |
| Velocity | 200mm/s |
| Velocity Basic Accuracy | ±5% |
| Velocity Max Resolution | 0.5mm/s |
| 其他详情 | |
|---|---|
| Certifications | 407860-NIST_S：CE、NIST 407860_S：CE |
| Dimensions | 180 × 72 × 32mm |
| Power | 1 节 9V 电池 |
| Warranty | 3 年 |
| Weight | 395g，带探针 |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech 407001-PRO Meter to Datalogger Conversion Software and USB Cable
Datasheet
Extech 407860 Datasheet
Certification
Extech 407860 Declaration of Conformity
User Manual
Extech 407860 User Manual
User Manual
Extech 407860 User Manual GB
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
