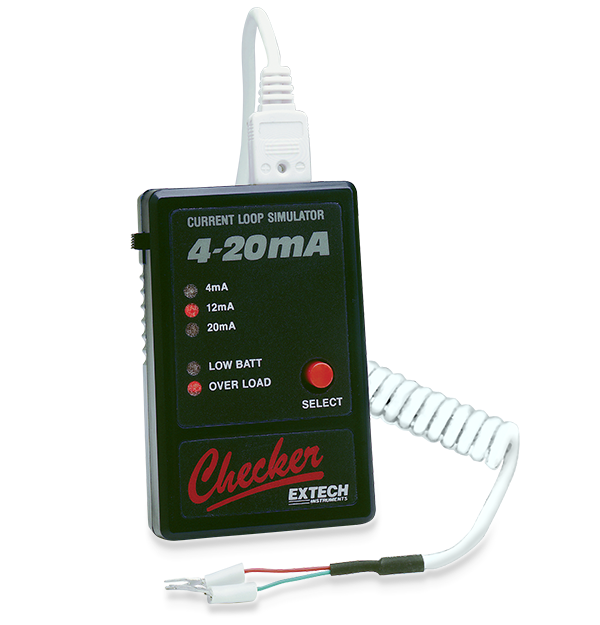

Extech 412440-S
Calibration Source Checker
The Extech 412440-S is a low cost, pocket-sized Calibration Source Checker for simulating current loops and for providing a quick and easy way for checking calibration of meters or controllers. It sources three current levels (4 mA, 12 mA, and 20 mA). Bright red LEDs indicate simulation output and battery status. An overload indication occurs when a load exceeds 240 ohms. Comes complete with 9 V battery, case, and calibration cable terminated with subminiature and spade lug connector.
规格
| 一般参数 | |
|---|---|
| 电流环路检查点 | 4mA, 12mA and 20mA |
| 电流环路检查点基本精度 | ±0.1mA |
| 过载显示 | >240Ω @ 20mA; >400Ω @ 12mA; >1,200Ω @ 4mA |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 3.5 × 2.3 × 1" (89 × 58.4 × 25.4mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE |
| 重量 | 10oz (283.5g) |
资源和支持
Datasheet
Extech 412440-S Datasheet
User Manual
Extech 412440 User Manual GB
Certification
Extech 412440 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
