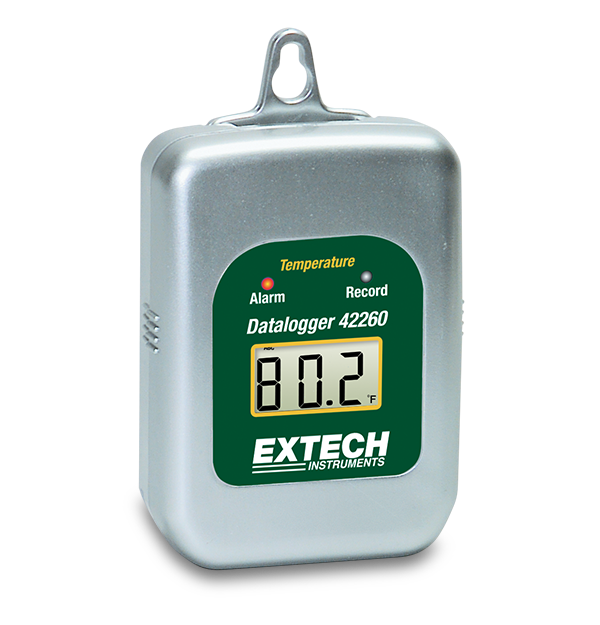

Extech 42260
Temperature Datalogger
The Extech 42260 is an additional Temperature Datalogger for use with the 42265 and 42266 kits. This waterproof (IP65) datalogger records up to 8,000 readings and has three start methods (scheduled, immediate or magnetic). The 42260 has a wide operating temperature range from -40°C to 85°C (-40°F to 185°F). Multiple dataloggers can be programmed and data downloaded from a single docking station (requires a docking station for initial programming).
规格
| 一般参数 | |
|---|---|
| 内存 | 8,000 points (temperature) + 8,000 points (humidity) |
| 数据记录间隔时间 | 1 sec to 12 hours |
| 温度（空气） | -40 to 185 °F (-40 to 85 °C) |
| 温度（空气）基本精度 | ±1 °F/±0.6 °C |
| 温度（空气）最大分辨率 | 0.1° |
| 其他详情 | |
|---|---|
| IP防护等级 | IP65 |
| 保修 | 2 years |
| 尺寸 | 3 × 2.3 × 0.88" (76 × 57.2 × 22.3mm) |
| 认证 | CE |
| 重量 | 2.6oz (72.6g) |
资源和支持
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech TrLog Software
User Manual
Extech 42260 42270 User Manual GB
Certification
Extech 42260 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
