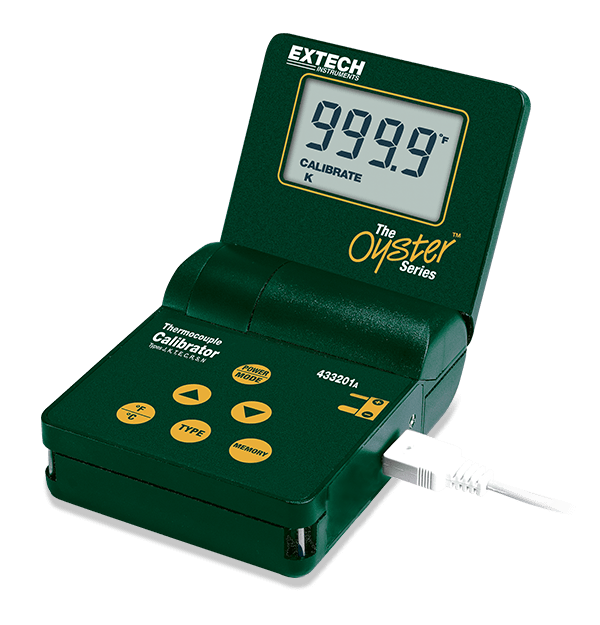

Extech 433201
Multi-Type Calibrator Thermometer
The Extech 433201 Multi-Type Calibrator Thermometer sources and measures 8 thermocouple types: J, K, T, E, C, R, S, and N. It displays output in terms of mV or in °C/°F based on its built in thermocouple tables. Five stored calibration values allow for quick calibrations. The Oyster case with a flip-up display is ideal for handheld or benchtop applications. Complete with a 9 V rechargeable battery, Type K thermocouple cable, copper calibration cable, and a 115 V AC adaptor/charger.
规格
| 一般参数 | |
|---|---|
| CJC（冷端补偿） | 0.03 °C/ °C (0.02 °F/ °F) |
| 温度[K型] | 0.1° (up to 999.9) or 1° (over 999.9 °) |
| 温度[红外] | 0.15% of reading ±1° |
| 温度（C 型）基本精度 | 32 to 3272 °F (0 to 1800 °C) |
| 温度（C 型）最大分辨率 | 0.15% of reading ±1° |
| 温度（E 型） | 0.1° (up to 999.9) or 1° (over 999.9 °) |
| 温度（E 型）基本精度 | 58 to 1382 °F (-50 to 750 °C) |
| 温度（E 型）最大分辨率 | 0.15% of reading ±1° |
| 温度（J 型） | 0.1° (up to 999.9) or 1° (over 999.9 °) |
| 温度（J 型）基本精度 | -58 to 1830 °F (-50 to 1000 °C) |
| 温度（J 型）最大分辨率 | 0.15% of reading ±1° |
| 温度（K 型）基本精度 | 0.1° (up to 999.9) or 1° (over 999.9 °) |
| 温度（K 型）最大分辨率 | -58 to 2498 °F (-50 to 1370 °C) |
| 温度（N 型） | 0.15% of reading ±1° |
| 温度（N 型）基本精度 | 0.1° (up to 999.9) or 1° (over 999.9 °) |
| 温度（N 型）最大分辨率 | -58 to 2372 °F (-50 to 1300 °C) |
| 温度（R 型） | 0.15% of reading ±1° |
| 温度（R 型）基本精度 | 0.1° (up to 999.9) or 1° (over 999.9 °) |
| 温度（R 型）最大分辨率 | 32 to 3182 °F (0 to 1750 °C) |
| 温度（S 型） | 0.15% of reading ±1° |
| 温度（S 型）基本精度 | 0.1° (up to 999.9) or 1° (over 999.9 °) |
| 温度（S 型）最大分辨率 | 32 to 3182 °F (0 to 1750 °C) |
| 温度（T 型） | 0.15% of reading ±1° |
| 温度（T 型）基本精度 | 0.1° (up to 999.9) or 1° (over 999.9 °) |
| 温度（T 型）最大分辨率 | -184 to 752 °F (-120 to 400 °C) |
| 电压 | -5.00mV to +55.00mV |
| 电压基本精度 | 0.01mV |
| 电压最大分辨率 | ±2 digits |
| 输入阻抗 | 10MΩ |
| 采样率 | 4 times/second |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 3.8 × 4.2 × 1.8" (96 × 108 × 45mm) |
| 认证 | CE |
| 重量 | 17oz |
资源和支持
Datasheet
Extech 433201 Datasheet
User Manual
Extech 433201 433202 User Manual
Certification
Extech 433201 Declaration of Conformity
