Extech 45170CM
5-in-1 Environmental Meter

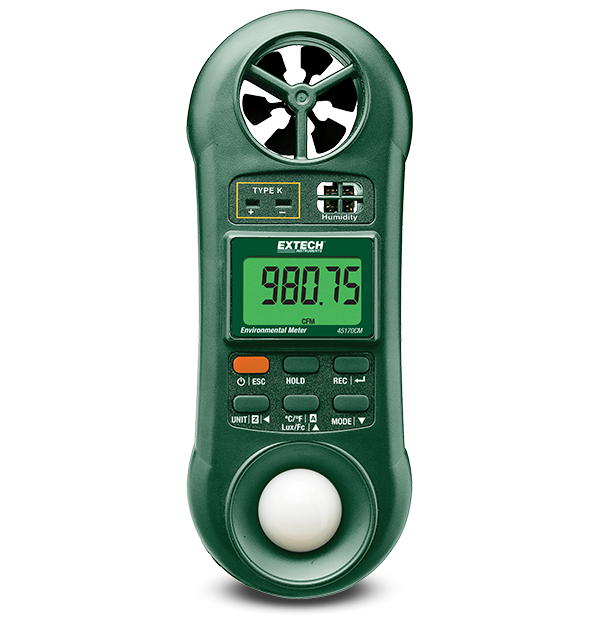

The Extech 45170CM is a convenient 5-in-1 Environmental Meter which measures air velocity, air volume, humidity, temperature, and light. It features ergonomic housing design with a large dual smart LCD where characters on display reverse direction depending on the function in use. Other features include data hold, min/max, auto power off functions. This multi-functional meter is ideal for professional or home use in testing the environmental quality in a building. Complete with built-in sensors, wrist strap and a 9 V battery.
规格
| 一般参数 | |
|---|---|
| 气量 (CFM) 最大分辨率 | 0.001CFM |
| 温度（K 型）最大分辨率 | -148°F to 2372°F (-100°C to 1300°C) |
| 温度（N 型） | ±2.5°F (1.2°C) |
| 温度（N 型）基本精度 | 0.1° |
| 温度（空气） | -148°F to 2372°F (-100°C to 1300°C) |
| 温度（空气）基本精度 | ±(1% of reading +2°F/1°C) |
| 温度（空气）最大分辨率 | 0.1° |
| 照度 (Lux) | 0 to 20,000Lux |
| 照度 (Lux) 基本精度 | ±(5% of reading + 8 digits) |
| 照度 (Lux) 最大分辨率 | 1Lux |
| 照度（英尺烛光） | 0 to 1860Fc |
| 照度（英尺烛光）基本精度 | ±(5% of reading + 8 digits) |
| 照度（英尺烛光）最大分辨率 | 0.1Fc |
| 相对湿度 | 10 to 95% |
| 相对湿度基本精度 | ±4% |
| 相对湿度最大分辨率 | 0.10% |
| 风速 (ft/min) | 80 to 5910 ft/min |
| 风速 (ft/min) 基本精度 | ±3% full scale |
| 风速 (ft/min) 最大分辨率 | 1ft/min |
| 风速 (km/h) | 1.4 to 108km/h |
| 风速 (km/h) 基本精度 | ±3% full scale |
| 风速 (km/h) 最大分辨率 | 0.1km/h |
| 风速 (m/s) | 0.4 to 30m/s |
| 风速 (m/s) 基本精度 | ±3% full scale |
| 风速 (m/s) 最大分辨率 | 0.1m/s |
| 风速 (mph) | 0.9 to 67MPH |
| 风速 (mph) 基本精度 | ±3% full scale |
| 风速 (mph) 最大分辨率 | 0.1MPH |
| 风速（节） | 0.8 to 58.3 knots |
| 风速（节）基本精度 | ±3% full scale |
| 风速（节）最大分辨率 | 0.1knots |
| 风量 (CFM) | 0.01 to 1,908,400CFM |
| 风量 (CMM) | 0.001 to 54,000CMM |
| 风量 (CMM) 最大分辨率 | 0.001CMM |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 叶片 | 1.2" (31mm) |
| 尺寸 | 6.1 × 2.4 × 1.3" (156 × 60 × 33mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE |
| 重量 | 5oz (160g) |
资源和支持
Certification
Extech 45170CM Declaration of Conformity
Datasheet
Extech 45170CM Datasheet
User Manual
Extech 45170CM User Manual GB
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
