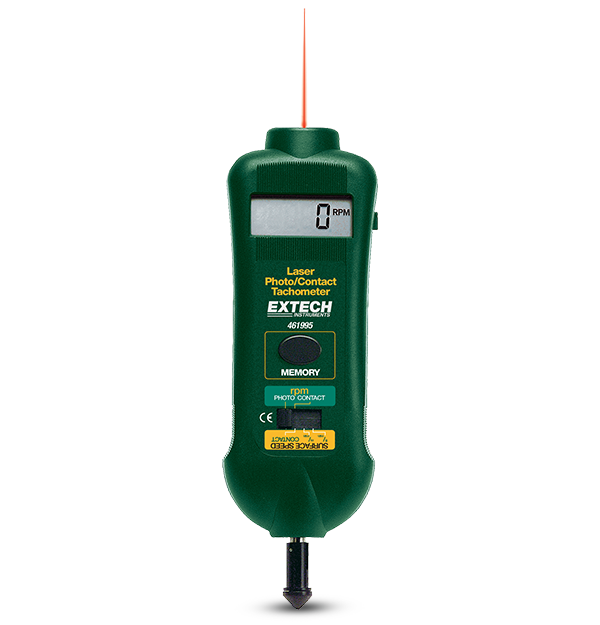

Extech 461995
组合接触式/激光转速仪
Extech 461995 组合接触式/激光转速仪提供接触式（0.5 RPM 至 19,999 RPM）和非接触式（10 RPM 至 99,999 RPM）转速测量功能，几乎适用于所有应用场景。最远可在 2m 距离处进行激光引导的非接触式测量，提高了安全性和便利性。配有用于测量表面线速度或转速的测速轮、4 节 AA 电池、0.6m 反光带、便携箱和用户手册。
规格
| 一般参数 | |
|---|---|
| Rotation Speed [Contact] | 0.5 至 19,999rpm |
| Rotation Speed [Contact] Basic Accuracy | ±读数的 0.05% |
| Rotation Speed [Contact] Max Resolution | 0.1 rpm |
| Rotation Speed [Strobe] | 10 至 99,999rpm |
| Rotation Speed [Strobe] Basic Accuracy | ±读数的 0.05% |
| Rotation Speed [Strobe] Max Resolution | 0.1 rpm |
| Surface Speed [Contact] | 0.05 至 1999.9m/min |
| Surface Speed [Contact] Basic Accuracy | ±读数的 0.05% |
| 其他详情 | |
|---|---|
| Certifications | 461995-NIST_S：CE、NIST 461995_S：CE |
| Dimensions | 216 × 66 × 38 mm |
| Power | 4 节 AA (1.5V) 电池 |
| Warranty | 2 年 |
| Weight | 300g |
Resources & Support
User Manual
Extech 461995 User Manual GB
Certification
Extech 461995 Declaration of Conformity
Datasheet
Extech 461895-461995 Datasheet
User Manual
Extech 461995 User Manual
