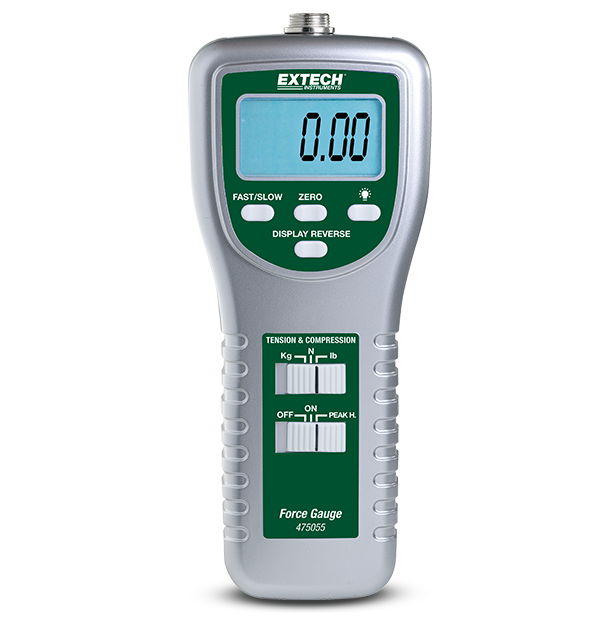

Extech 475055
高容量测力计
475055 是一款高容量测力计。测量范围为 0.05 至 100 千克、0.05 至 220 磅、0.2 至 980 牛顿。基本精度为 0.5%。可测量张力和压缩度，具有峰值保持和归零功能。正向/反向显示，便于读取。带背光功能的大尺寸液晶显示屏。配有张力和压缩适配器、6 节 AA 电池和便携箱。
规格
| 一般参数 | |
|---|---|
| Force | 100kg、980 牛顿 |
| Force Basic Accuracy | ±（读数的 0.5%） |
| Force Max Resolution | 0.05 磅、0.05kg、0.2 牛顿 |
| Full Scale Detection | <1mm |
| Overload Capacity | 150kg |
| Transducer Type | 测力传感器 |
| Update Rate | 快速模式 0.2 秒；慢速模式 0.6 秒 |
| 其他详情 | |
|---|---|
| Certifications | 475055-NIST_S：CE、NIST 475055_S：CE |
| Dimensions | 仪表：215 × 90 × 45 mm |
| Power | 6 节 AA (1.5V) 电池 |
| Warranty | 2 年 |
| Weight | 450g |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech 407001-PRO Meter to Datalogger Conversion Software and USB Cable
User Manual
Extech 475055 User Manual GB
Datasheet
Extech 475055 Datasheet
User Manual
Extech 475055 User Manual
