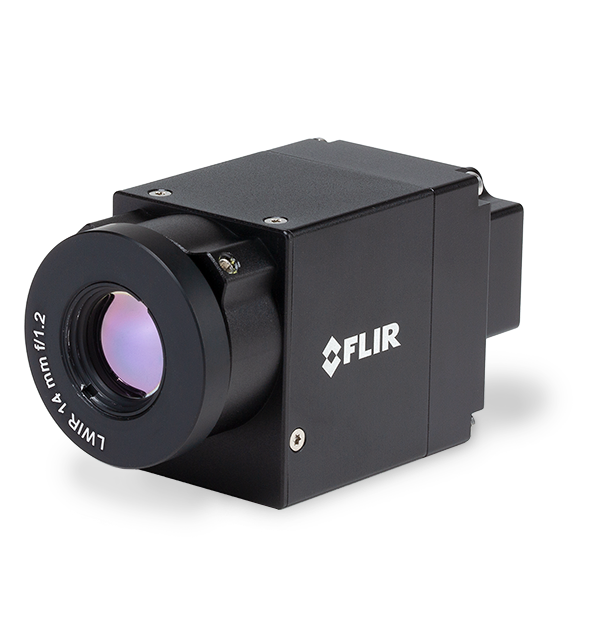

Flir A38/A68
机器视觉热像仪
Product Variations
Flir A38/A68 红外热像仪是 Flir 最小的非制冷长波红外热像仪，适用于工业自动化和机器视觉应用。这些热成像温度传感器专为过程控制和质量保证而设计，可提供视觉温度信息，以在检测小幅温度变化很关键的应用中支持关键决策。紧凑的尺寸和简单的热像仪设计可提供可靠而稳健的热成像数据，而与以太网供电 (PoE) 的直接连接和扩展的工作温度范围使其成为工业环境的理想热像仪。
简单的设计却提供多项重要功能，包括 60 Hz 帧率、8 位和 16 位视频流，以及以太网供电。
标准视觉热像仪协议使热像仪能够无缝集成到 GenICam 的兼容软件中，从而加快系统开发和解决方案部署。
Flir A38/A68 热像仪的尺寸仅为 29×36×59 mm，足够小巧，适合狭小的空间，但同时又坚固耐用，可承受高达 60°C 的温度。
规格
| Highlighted | |
|---|---|
| Ethernet Interface | Wired |
| EMC | See User manual: https://support.flir.com/resources/4rur |
| Image Frequency | A38: 60 Hz A68: 30 Hz |
| Thermal Sensitivity_NETD | <50 mK @ 25°C ambient |
| 通讯与数据存储 | |
|---|---|
| Connection Type | RJ-45 |
| Ethernet | For control, image, and power |
| Ethernet Communication | GigE Vision / GenICam |
| Ethernet Interface | Wired |
| Ethernet Power | Power over Ethernet (PoE) |
| Ethernet Protocols | GigEVision |
| Ethernet Standard | IEEE 802.3 |
| Ethernet Type | Gigabit Ethernet |
| 成像与光学 | |
|---|---|
| Color | Black |
| Detector Pitch | 17 µm |
| Field of view [FOV] | 11301-0101 FLIR A38 24°: 24° × 18.1° 11301-0102 FLIR A38 42°: 40.1° × 29° 11302-0101 FLIR A68 24°: 24.2° × 18.4° 11302-0102 FLIR A68 42°: 42.1° × 31.9° |
| Focal Length | 11301-0101 FLIR A38 24°: 13 mm (0.51 in) 11301-0102 FLIR A38 42°: 8.1 mm (0.32 in) 11302-0101 FLIR A68 24°: 25 mm (0.98 in) 11302-0102 FLIR A68 42°: 14.2 mm (0.56 in) |
| Focus | Fixed |
| F_number | 11301-0101 FLIR A38 24°: 1.0 11301-0102 FLIR A38 42°: 1.1 11302-0101 FLIR A68 24°: 1.2 11302-0102 FLIR A68 42°: 1.24 |
| Image Frequency | A38: 60 Hz A68: 30 Hz |
| IR Resolution | A38: 320 × 240 pixels A68: 640 × 480 pixels |
| Minimum Focus Distance | 11301-0101 FLIR A38 24°: 0.4 m (1.3 ft) 11301-0102 FLIR A38 42°: 1.5 m (4.9 ft) 11302-0101 FLIR A68 24°: 2.0 m (6.6 ft) 11302-0102 FLIR A68 42°: 1.3 m (4.3 ft) |
| Pixel Format | Mono8 or 16-bit/pixel |
| Spectral Range | 8–14 µm (LWIR) |
| Thermal Sensitivity_NETD | <50 mK @ 25°C ambient |
| 常规 | |
|---|---|
| Package Includes | Infrared camera |
| Packaging Size | 130 × 140 × 100 mm (5.1 × 5.5 × 3.9 in) |
| Packaging Type | Cardboard box |
| Packaging Weight | 0.23 kg (0.51 lb) |
| Size [L x W x H ] w_o Lens | 59 × 29 × 36 mm (2.32 × 1.14 × 1.42 in) |
| Weight [without lens] | 67 g (2.4 oz) |
| 环境与认证 | |
|---|---|
| EMC | See User manual: https://support.flir.com/resources/4rur |
| Humidity [operating and storage] | Maximum 80% relative humidity, non-condensating |
| Operating Temperature Range | –35°C to 60°C (-31°F to 140°F) |
| Safety | See User manual: https://support.flir.com/resources/4rur |
| Shock | See User manual: https://support.flir.com/resources/4rur |
| Storage Temperature Range | -40°C to 80°C (-40°F to 176°F) To avoid possible damage during storage, ensure that the sensor is not exposed to air. Use a lens cap or lens to cover the sensor. |
| Tripod Mounting | UNC ¼″-20 |
| Vibration | See User manual: https://support.flir.com/resources/4rur |
| 电源 | |
|---|---|
| Power Consumption | 12 V: 2.8 W 24 V: 2.8 W PoE (48 V): 3.5 W |
