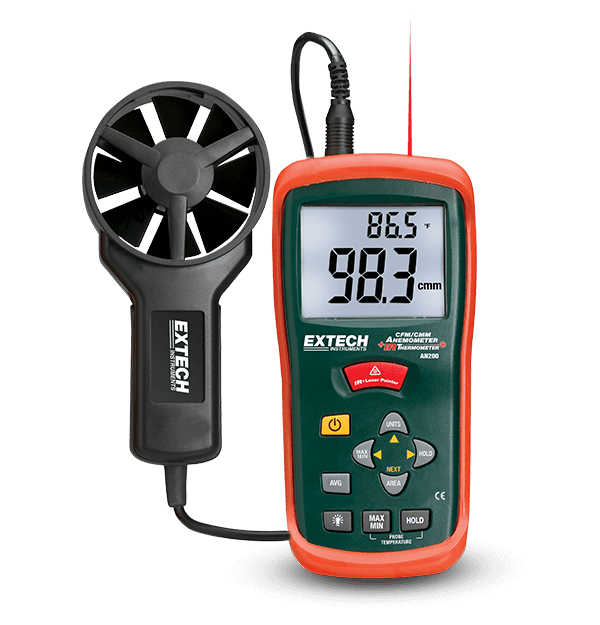

Extech AN200
内置红外测温仪的 CFM/CMM 迷你热线风速仪
AN200 是一款带有内置红外测温仪的 CFM/CMM 迷你热线风速仪。内置的非接触式红外测温仪可测量远处 260°C 的表面温度，具有 8:1 的测量距离比和激光指示器。这款 CFM/CMM 热线风速仪可同时显示风量或者风速以及环境温度。便于设置的区域尺寸（ft² 或 m²）可存储在风速仪的内部存储器中，以便下次开机后使用。其他功能包括：20 点平均风量，以及通过 120 cm 线缆上的低摩擦直径 72mm 滚柱叶轮实现的 3% 速度精度。配有 9V 电池、橡胶保护皮套和便携箱。
规格
| 一般参数 | |
|---|---|
| Air Velocity [ft_min] | 80 至 5906 ft/min |
| Air Velocity [ft_min] Basic Accuracy | ±3% ft/min |
| Air Velocity [ft_min] Max Resolution | 1 ft/min |
| Air Velocity [km_h] | 1.4至108.0 km/h |
| Air Velocity [km_h] Basic Accuracy | ±3% km/h |
| Air Velocity [km_h] Max Resolution | 0.1 km/h |
| Air Velocity [knots] | 0.8至58.3节 |
| Air Velocity [knots] Basic Accuracy | ±3% 节 |
| Air Velocity [knots] Max Resolution | 0.1 节 |
| Air Velocity [mph] | 0.9至67.2 mph |
| Air Velocity [mph] Basic Accuracy | ±3% mph |
| Air Velocity [mph] Max Resolution | 0.1 mph |
| Air Velocity [m_s] | 0.40 至 30.00 m/s |
| Air Velocity [m_s] Basic Accuracy | ±3% m/s |
| Air Velocity [m_s] Max Resolution | 0.01 m/s |
| Air Volume [CFM] | 0 至 999,999 CMM (m³/min) |
| Air Volume [CFM] Max Resolution | 0.1 |
| Air Volume [CMM] | 0 至 999,999 CFM (ft³/min) |
| Air Volume [CMM] Max Resolution | 0.1 |
| Temperature [Air] | -10 至 60℃ |
| Temperature [Air] Basic Accuracy | ±3 ̊C |
| Temperature [Air] Max Resolution | 0.1 ˚C |
| Temperature [IR] Basic Accuracy | -50 至 260 ̊ C |
| Temperature [IR] Max Resolution | ±5.0˚C (< -4°F)；±读数的 2% 或±2°C (> -4°F) |
| Temperature [RTD] | 0.1˚F (< -4°F)；1˚F (> -4°F) |
| 其他详情 | |
|---|---|
| Certifications | AN200-NISTL_S：CE、NIST（仅限于某些功能） AN200_S：CE AN200-NIST_S：CE、NIST |
| Dimensions | 178 × 74 × 33 mm |
| Power | 1 节 9V 电池 |
| Warranty | 2 年 |
| Weight | 700g |
