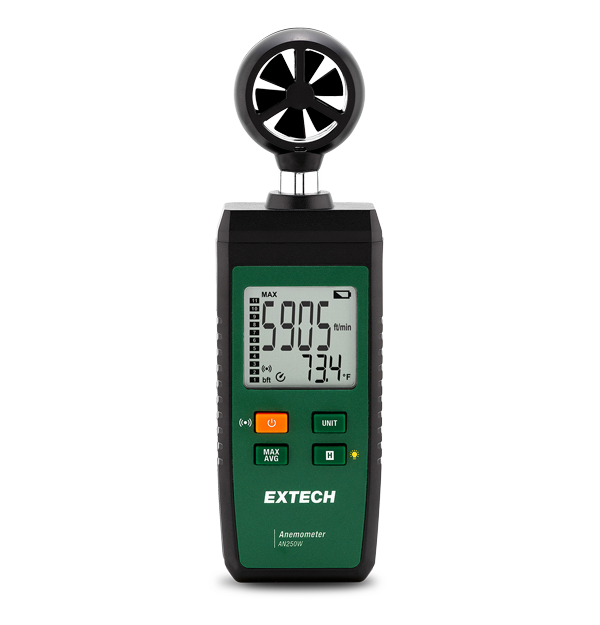

Extech AN250W
可连接 ExView® 应用程序的风速计
AN250W 是一款带蓝牙®接入功能的紧凑型空气流量计，使建筑、暖通空调和维护专业人员可以利用免费的 ExView 应用程序直接在移动设备上查看和共享空气流速和温度数据。凭借捕获数据、显示趋势、设置视觉和音频闹钟，以及创建和发送报告的功能，用户可以更深入地了解环境状况和建筑物健康情况。AN250W 是 Extech 250W Connected 系列产品的一部分，可提高您在现场评估和报告问题的能力。该产品让您能够提高决策的速度和质量，从而可立即解决关键问题。
规格
| 一般参数 | |
|---|---|
| Air Velocity [ft_min] | 295.2 至 5905 ft/min |
| Air Velocity [ft_min] Basic Accuracy | ±5% full scale |
| Air Velocity [ft_min] Max Resolution | 1 ft/min |
| Air Velocity [km_h] | 5.4 to 108 km/h |
| Air Velocity [km_h] Basic Accuracy | ±5% 满量程 |
| Air Velocity [km_h] Max Resolution | 0.1 km/h |
| Air Velocity [knots] | 2.9 至 58 节 |
| Air Velocity [knots] Basic Accuracy | ±5% full scale |
| Air Velocity [knots] Max Resolution | 0.1 节 |
| Air Velocity [mph] | 3.3 to 67 mph |
| Air Velocity [mph] Basic Accuracy | ±5% full scale |
| Air Velocity [mph] Max Resolution | 0.1 mph |
| Air Velocity [m_s] | 1.5 至 30 m/s |
| Air Velocity [m_s] Basic Accuracy | ±5% full scale |
| Air Velocity [m_s] Max Resolution | 0.1 m/s |
| Backlight LCD | |
| Battery | |
| Beaufort Wind Force | 0 to 12 |
| Beaufort Wind Force Basic Accuracy | ±1 |
| Beaufort Wind Force Max Resolution | 1 |
| Operating Condition | |
| Sampling Rate | 0.5 秒 |
| Temperature [Air] | -10 至 50°C |
| Temperature [Air] Basic Accuracy | ±4°F (±2°C) |
| Temperature [Air] Max Resolution | 0.1°C |
| Wireless Connectivity | Bluetooth® (via ExView iOS/Android mobile app) |
| Wireless Transmission Range | 视线最长 90 m |
| 其他详情 | |
|---|---|
| Certifications | CE, FCC, UKCA |
| Dimensions | 6.9 × 2.1 × 1.1 in (176 × 53 × 28 mm) |
| Operating Conditions | 0 至 40°C，≤80% 相对湿度 |
| Power | 3 × AAA (1.5V) batteries |
| Warranty | 2 年 |
| Weight | 3.2 oz (90 g) |
