Extech AN300
大型叶片 CFM/CMM 热线风速仪
Product Variations

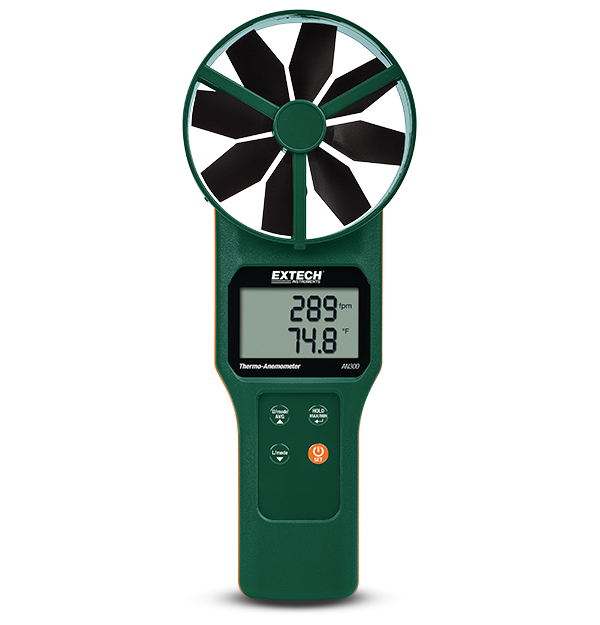

AN300 是一款大型叶片 CFM/CMM 热线风速仪。该仪表可测量风速、风量和温度。Extech 的大型叶片热线风速仪系列可在较大尺寸的管道上提供更精确的读数。所有仪表均可同时显示风速或风量和温度。配有 4 节 AAA 电池和硬质便携箱。
规格
| 一般参数 | |
|---|---|
| Air Velocity [ft_min] | 40 至 5900ft/min |
| Air Velocity [ft_min] Basic Accuracy | ±1.5% |
| Air Velocity [m_s] | 0.2 至 30m/s |
| Air Velocity [m_s] Basic Accuracy | ±1.5% |
| Air Volume [CFM] | 0 至 99999 CFM |
| Air Volume [CFM] Max Resolution | 0.1 CFM |
| Air Volume [CMM] | 0 至 99999 CMM |
| Air Volume [CMM] Max Resolution | 0.1 CMM |
| Temperature [Air] | -20 至 60°C |
| Temperature [Air] Basic Accuracy | ±0.6°C |
| 其他详情 | |
|---|---|
| Certifications | AN300-NIST_S：CE、NIST AN300_S：CE |
| Dimensions | 269 × 106 × 51mm |
| Power | 4 节 AAA (1.5V) 电池 |
| Warranty | 2 年 |
| Weight | 200g |
Resources & Support
Certification
Extech AN300 Declaration of Conformity
Datasheet
Extech AN3xx Datasheet
